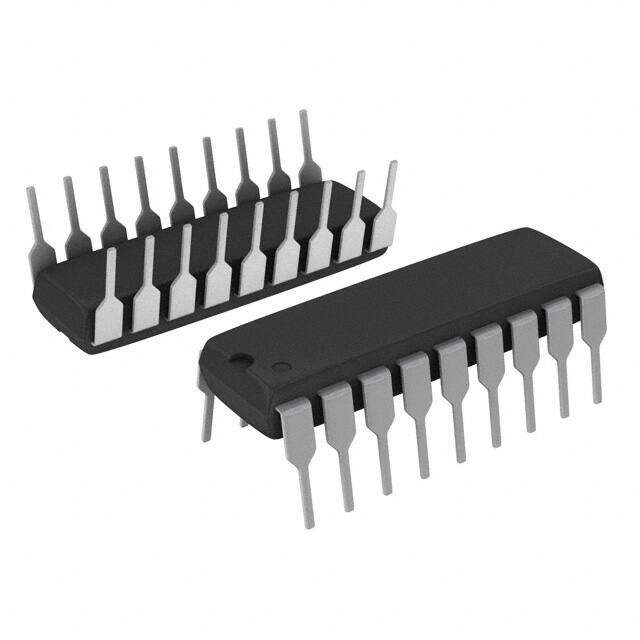

SG2526BN
RoHS
RoHS compliant
RoHS compliantPackage 18-DIP (0.300, 7.62mm)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
SG*526 Buck Flyback Tube e3 DC to DC switching controller 100ns 5.08mm 35V 1Hz~500kHz
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 2 weeks ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 18-DIP (0.300, 7.62mm)
Number of Pins 18
Technical
Operating Temperature -25°C~85°C TA
Packaging Tube
Published 1997
JESD-609 Code e3
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 18
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Subcategory Switching Regulator or Controllers
Technology BIPOLAR
Terminal Position DUAL
Frequency 500kHz
Base Part Number SG*526
Function Step-Down, Step-Up/Step-Down
Number of Outputs 2
Output Type Transistor Driver
Input Voltage-Nom 15V
Analog IC - Other Type SWITCHING CONTROLLER
Output Configuration Positive
Voltage - Supply (Vcc/Vdd) 8V~35V
Quiescent Current 18mA
Control Features Dead Time Control, Enable, Frequency Control, Reset, Soft Start
Input Voltage (Min) 8V
Topology Buck, Flyback
Control Mode VOLTAGE-MODE
Frequency - Switching 1Hz~500kHz
Input Voltage (Max) 35V
Control Technique PULSE WIDTH MODULATION
Rise Time 300ns
Synchronous Rectifier Yes
Fall Time (Typ) 100 ns
Switcher Configuration PUSH-PULL
Max Duty Cycle 49 %
Clock Sync No
Output Phases 1
Dimensions
Height Seated (Max) 5.08mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
