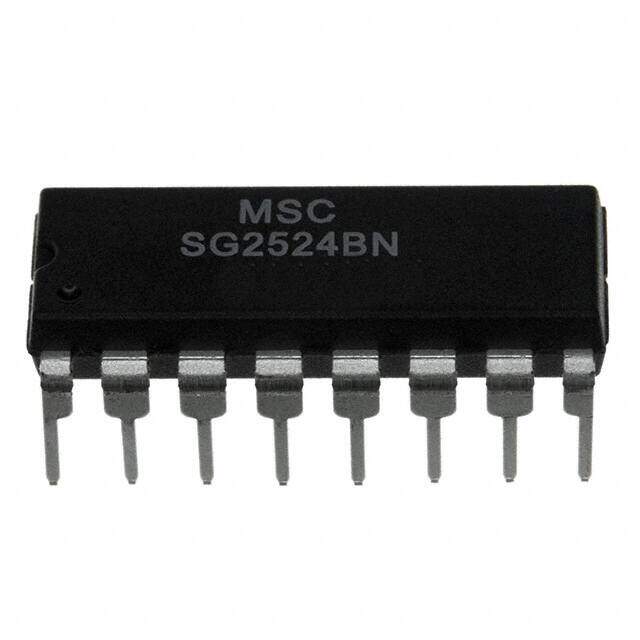

SG2524BN
RoHS
/
Package 16-DIP (0.300, 7.62mm)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
SG*524 Flyback Tube e3 DC to DC switching controller 100ns 5.08mm 19V 50Hz~600kHz
PDF
/
Buying Options
Total Price: USD $21.4
Unit Price: USD $21.40255
≥1 USD $21.40255
≥10 USD $17.5617
≥100 USD $17.0126
≥500 USD $16.4635
≥1000 USD $15.91535
Inventory: 1348
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 5.08mm
Technical
Output Phases 1
Clock Sync No
Max Duty Cycle 49 %
Switcher Configuration PUSH-PULL
Fall Time (Typ) 100 ns
Synchronous Rectifier Yes
Rise Time 200ns
Control Technique PULSE WIDTH MODULATION
Input Voltage (Max) 40V
Frequency - Switching 50Hz~600kHz
Control Mode VOLTAGE-MODE
Topology Flyback
Input Voltage (Min) 7V
Control Features Enable
Quiescent Current 8mA
Voltage - Supply (Vcc/Vdd) 7V~40V
Output Configuration Positive
Analog IC - Other Type SWITCHING CONTROLLER
Input Voltage-Nom 20V
Output Type Transistor Driver
Output Voltage 19V
Number of Outputs 2
Function Step-Up/Step-Down
Base Part Number SG*524
Frequency 400kHz
Terminal Position DUAL
Technology BIPOLAR
Subcategory Switching Regulator or Controllers
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Published 1997
Packaging Tube
Operating Temperature -25°C~85°C TA
Physical
Number of Pins 16
Package / Case 16-DIP (0.300, 7.62mm)
Mounting Type Through Hole
Mount Through Hole
