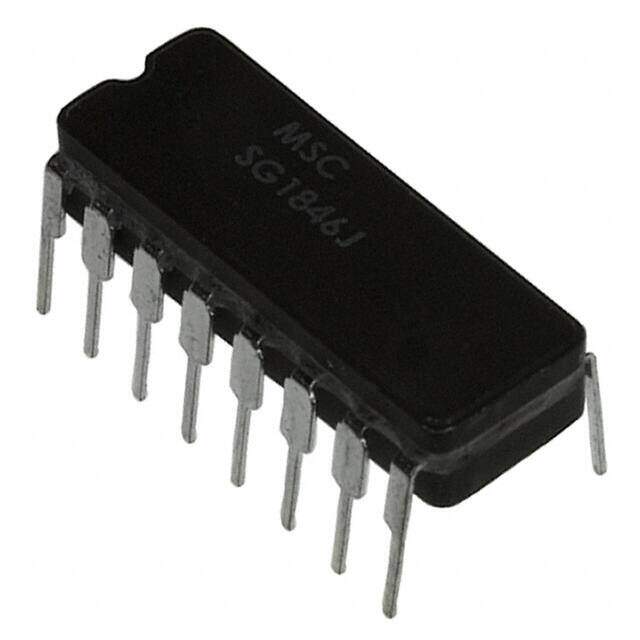

SG1846J-883B
RoHS
/
Package 16-CDIP (0.300, 7.62mm)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
Buck Boost Push-Pull Tube Military MIL-STD-883B e0 DC to DC switching controller 50ns 100mA 5.08mm 40V
PDF
/
Buying Options
Total Price: USD $58.39
Unit Price: USD $58.38985
≥1 USD $58.38985
≥10 USD $47.90945
≥100 USD $46.41225
≥500 USD $44.91505
≥1000 USD $43.41785
Inventory: 1160
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 16-CDIP (0.300, 7.62mm)
Number of Pins 16
Technical
Operating Temperature -55°C~125°C TA
Packaging Tube
Published 2009
Series Military, MIL-STD-883B
JESD-609 Code e0
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Function Step-Up, Step-Down, Step-Up/Step-Down
Number of Outputs 2
Qualification Status Not Qualified
Output Type Transistor Driver
Input Voltage-Nom 15V
Analog IC - Other Type SWITCHING CONTROLLER
Output Configuration Positive
Output Current 100mA
Voltage - Supply (Vcc/Vdd) 8V~40V
Control Features Current Limit, Enable
Input Voltage (Min) 8V
Topology Buck, Boost, Push-Pull
Control Mode CURRENT-MODE
Frequency - Switching 1Hz~500kHz
Input Voltage (Max) 40V
Control Technique PULSE WIDTH MODULATION
Rise Time 50ns
Synchronous Rectifier Yes
Fall Time (Typ) 50 ns
Screening Level MIL-STD-883 Class B
Output Phases 1
Dimensions
Height Seated (Max) 5.08mm
Compliance
RoHS Status Non-RoHS Compliant
