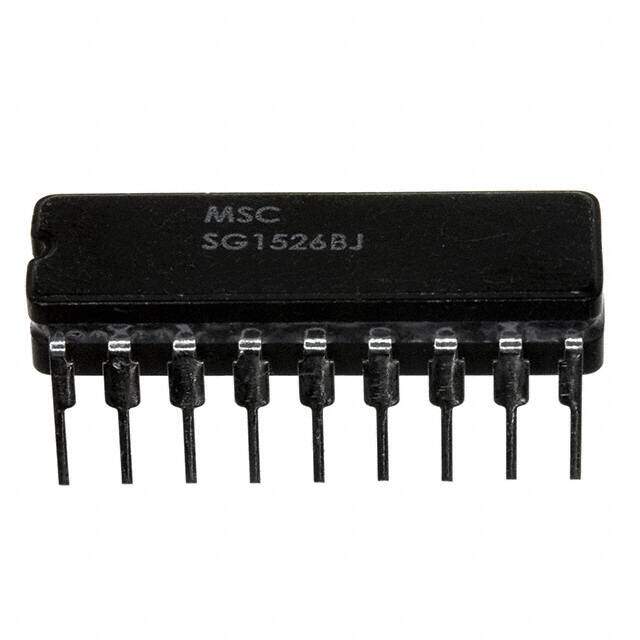

SG1526BJ-DESC
RoHS
RoHS compliant
RoHS compliantPackage 18-CDIP (0.300, 7.62mm)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
Buck Flyback Tube Military MIL-STD-883 e0 DC to DC switching controller 100ns 5.08mm 35V 1Hz~500kHz
PDF
/
Buying Options
Total Price: USD $37.28
Unit Price: USD $37.277968
≥1 USD $37.277968
≥10 USD $35.167894
≥100 USD $33.177259
≥500 USD $31.299291
≥1000 USD $29.527645
Inventory: 1379
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 5.08mm
Technical
Output Phases 1
Clock Sync No
Duty Cycle (Max) 49%
Max Frequency 500kHz
Switcher Configuration PUSH-PULL
Fall Time (Typ) 100 ns
Synchronous Rectifier Yes
Rise Time 300ns
Control Technique PULSE WIDTH MODULATION
Input Voltage (Max) 35V
Frequency - Switching 1Hz~500kHz
Control Mode VOLTAGE-MODE
Topology Buck, Flyback
Input Voltage (Min) 8V
Control Features Enable, Reset, Soft Start
Voltage - Supply (Vcc/Vdd) 8V~35V
Output Configuration Positive
Analog IC - Other Type SWITCHING CONTROLLER
Input Voltage-Nom 15V
Output Type Transistor Driver
Number of Outputs 2
Function Step-Down, Step-Up/Step-Down
Terminal Position DUAL
Technology CMOS
Subcategory Switching Regulator or Controllers
Terminal Finish TIN LEAD
ECCN Code EAR99
Number of Terminations 18
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e0
Series Military, MIL-STD-883
Published 1997
Packaging Tube
Operating Temperature -55°C~125°C TJ
Physical
Number of Pins 18
Package / Case 18-CDIP (0.300, 7.62mm)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time 14 Weeks
