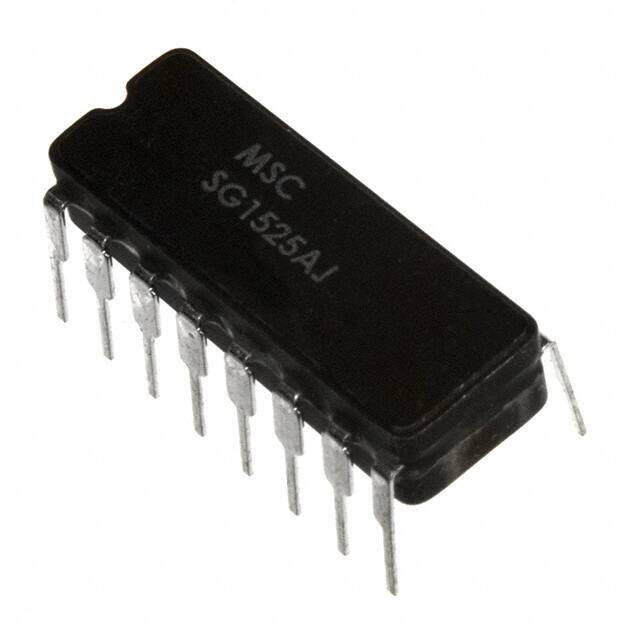

SG1525AJ-883B
RoHS
RoHS compliant
RoHS compliantPackage 16-CDIP (0.300, 7.62mm)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
Push-Pull Tube e0 IN PRODUCTION (Last Updated: 1month ago) DC to DC switching controller 50ns 5.08mm 35V 100Hz~350kHz
PDF
/
Buying Options
Total Price: USD $32.22
Unit Price: USD $32.21735
≥1 USD $32.21735
≥10 USD $26.43565
≥100 USD $25.60915
≥500 USD $24.78265
≥1000 USD $23.9571
Inventory: 1466
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 5.08mm
Technical
Output Phases 1
Max Duty Cycle 49 %
Screening Level MIL-STD-883 Class B
Max Frequency 350kHz
Fall Time (Typ) 50 ns
Synchronous Rectifier Yes
Rise Time 100ns
Control Technique PULSE WIDTH MODULATION
Input Voltage (Max) 35V
Frequency - Switching 100Hz~350kHz
Output Current-Max 0.5A
Control Mode VOLTAGE-MODE
Topology Push-Pull
Input Voltage (Min) 8V
Control Features Enable, Frequency Control, Soft Start
Voltage - Supply (Vcc/Vdd) 8V~35V
Output Configuration Positive
Analog IC - Other Type SWITCHING CONTROLLER
Input Voltage-Nom 20V
Output Type Transistor Driver
Qualification Status Not Qualified
Number of Outputs 2
Function Step-Up/Step-Down
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology BIPOLAR
Subcategory Switching Regulator or Controllers
Terminal Finish TIN LEAD
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e0
Published 1997
Packaging Tube
Operating Temperature -55°C~125°C TA
Physical
Number of Pins 16
Package / Case 16-CDIP (0.300, 7.62mm)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time 14 Weeks
