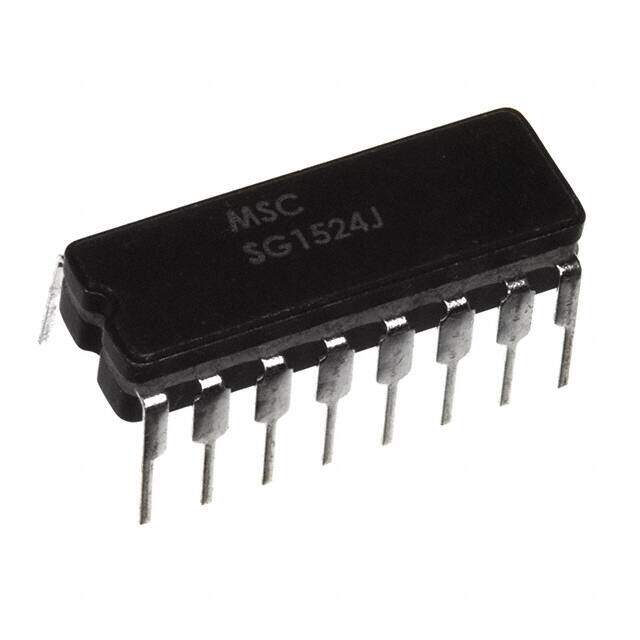

SG1524J
RoHS
/
Package 16-CDIP (0.300, 7.62mm)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
SG*524 Buck Flyback Push-Pull Tube e0 DC to DC switching controller 200ns 50A 5.08mm 17V
PDF
/
Buying Options
Total Price: USD $83.71
Unit Price: USD $83.7102
≥1 USD $83.7102
≥10 USD $81.09485
≥100 USD $78.47855
≥500 USD $75.8632
≥1000 USD $68.01525
Inventory: 247
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Height Seated (Max) 5.08mm
Technical
Output Phases 1
Clock Sync No
Duty Cycle (Max) 49%
Fall Time (Typ) 200 ns
Synchronous Rectifier Yes
Rise Time 400ns
Control Technique PULSE WIDTH MODULATION
Input Voltage (Max) 40V
Frequency - Switching 100kHz~300kHz
Control Mode VOLTAGE-MODE
Topology Buck, Flyback, Push-Pull
Input Voltage (Min) 8V
Control Features Enable
Quiescent Current 100μA
Voltage - Supply (Vcc/Vdd) 8V~40V
Output Current 50A
Output Configuration Positive
Analog IC - Other Type SWITCHING CONTROLLER
Input Voltage-Nom 20V
Output Type Transistor Driver
Output Voltage 17V
Number of Outputs 2
Function Step-Down, Step-Up/Step-Down
Base Part Number SG*524
Frequency 300kHz
Terminal Position DUAL
Technology BIPOLAR
Subcategory Switching Regulator or Controllers
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code no
JESD-609 Code e0
Packaging Tube
Operating Temperature -55°C~125°C TJ
Physical
Number of Pins 16
Package / Case 16-CDIP (0.300, 7.62mm)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 2 weeks ago)
