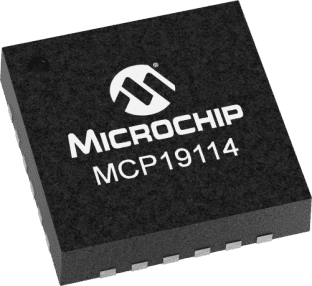

MCP19114-E/MJVAO
RoHS
RoHS compliant
RoHS compliantPackage 24-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
MCP19114 Boost Cuk Flyback SEPIC Tube Automotive AEC-Q100 DC to DC switching controller 4mm 42V 31.25kHz~2MHz -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $2.81
Unit Price: USD $2.806996
≥1 USD $2.806996
≥10 USD $2.648111
≥100 USD $2.498215
≥500 USD $2.35681
≥1000 USD $2.223405
Inventory: 1304
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4mm
Length 4mm
Height Seated (Max) 0.9mm
Technical
Serial Interfaces I2C
Synchronous Rectifier No
Control Technique PULSE WIDTH MODULATION
Input Voltage (Max) 42V
Frequency - Switching 31.25kHz~2MHz
Control Mode CURRENT-MODE
Topology Boost, Cuk, Flyback, SEPIC
Input Voltage (Min) 4.5V
Voltage - Supply (Vcc/Vdd) 4.5V~42V
Output Configuration Positive
Analog IC - Other Type SWITCHING CONTROLLER
Input Voltage-Nom 12V
Output Type Transistor Driver
Number of Outputs 1
Function Step-Up, Step-Up/Step-Down
JESD-30 Code S-PQCC-N24
Base Part Number MCP19114
Terminal Pitch 0.5mm
Terminal Position QUAD
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Automotive, AEC-Q100
Packaging Tube
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 24-VFQFN Exposed Pad
Mounting Type Surface Mount
