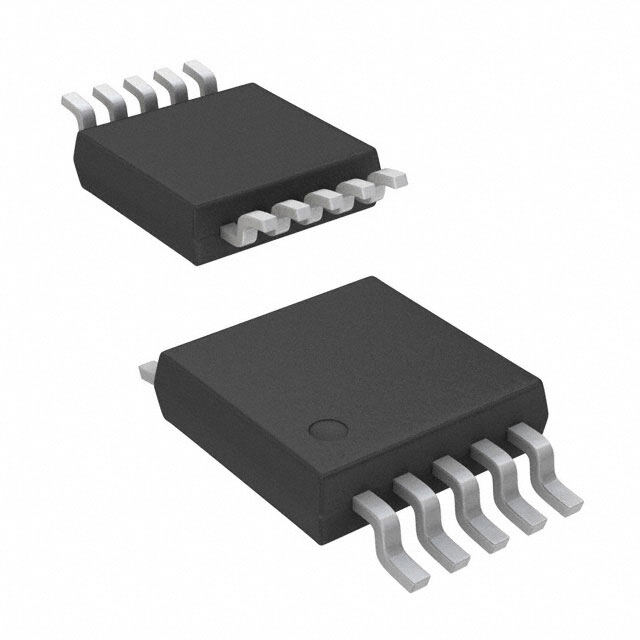

SP6132HEU-L
RoHS
RoHS compliant
RoHS compliantPackage 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
Buck Tube e3 Positive DC to DC switching controller 2A 3mm 5.5V 300kHz
PDF
/
Buying Options
Total Price: USD $0.63
Unit Price: USD $0.6289
≥1 USD $0.6289
≥10 USD $0.51585
≥100 USD $0.4997
≥500 USD $0.48355
≥1000 USD $0.4674
Inventory: 21010
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 3mm
Length 3mm
Technical
Clock Sync No
Duty Cycle (Max) 100%
Switcher Configuration PUSH-PULL
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Input Voltage (Max) 5.5V
Frequency - Switching 300kHz
Output Current-Max 2A
Control Mode VOLTAGE-MODE
Topology Buck
Input Voltage (Min) 4.5V
Control Features Soft Start
Voltage - Supply (Vcc/Vdd) 3V~28V
Output Configuration Positive
Analog IC - Other Type SWITCHING CONTROLLER
Input Voltage-Nom 5V
Output Type Transistor Driver
Number of Outputs 1
Function Step-Down
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
JESD-609 Code e3
Published 2006
Packaging Tube
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Mounting Type Surface Mount
