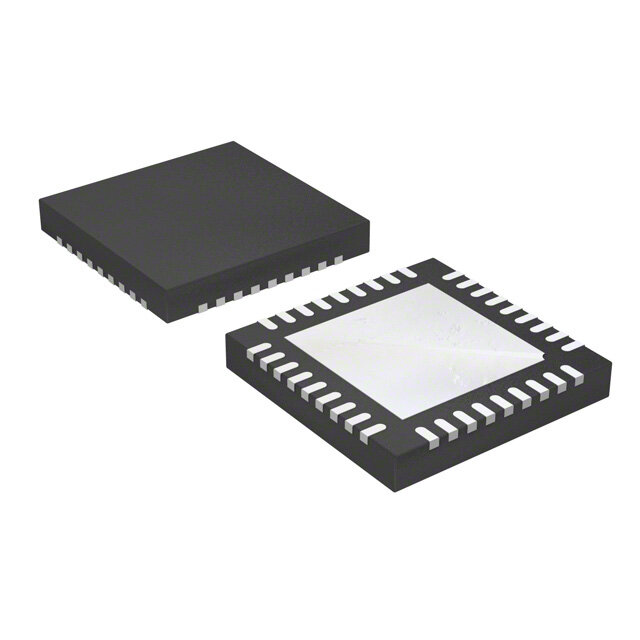

MAX20751EKX+
RoHS
RoHS compliant
RoHS compliantPackage 36-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
MAX20751 Buck Tray OUTPUT VOLTAGE= 0.5V TO 1.5V DC to DC switching controller 6mm 1.98V 300kHz~800kHz -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $9.5
Unit Price: USD $9.4952
≥1 USD $9.4952
≥10 USD $8.58
≥100 USD $8.180832
≥500 USD $7.103474
≥1000 USD $6.784228
≥3000 USD $6.185608
Inventory: 236
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 6mm
Length 6mm
Height Seated (Max) 1mm
Technical
Serial Interfaces PMBus
Synchronous Rectifier No
Control Technique PULSE WIDTH MODULATION
Input Voltage (Max) 1.98V
Frequency - Switching 300kHz~800kHz
Control Mode VOLTAGE-MODE
Topology Buck
Input Voltage (Min) 1.71V
Control Features Phase Control, Power Good, Ramp
Voltage - Supply (Vcc/Vdd) 1.71V~3.63V
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 1.86V
Output Type PWM Signal
Number of Outputs 4
Function Step-Down
Base Part Number MAX20751
Terminal Pitch 0.5mm
Terminal Position QUAD
Additional Feature OUTPUT VOLTAGE= 0.5V TO 1.5V
ECCN Code EAR99
Number of Terminations 36
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Published 2006
Packaging Tray
Operating Temperature -40°C~125°C TJ
Physical
Number of Pins 36
Package / Case 36-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
