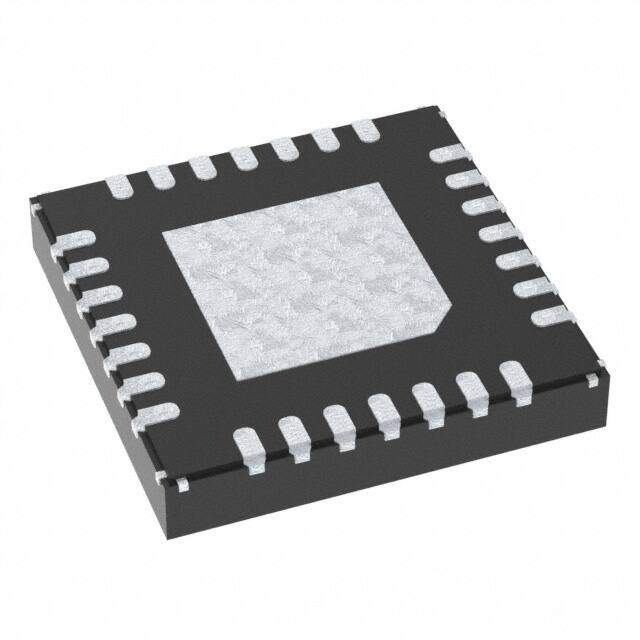

MAX20034ATIS/VY+
RoHS
RoHS compliant
RoHS compliantPackage 28-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
Buck 28-WFQFN Exposed Pad Automotive AEC-Q100 ALSO HAS 3.3V FIXED OUTPUT VOLTAGE DC to DC switching controller 5mm 5V 220kHz~2.2MHz -40C~125C
PDF
/
Buying Options
Total Price: USD $4.59
Unit Price: USD $4.5936
≥1 USD $4.5936
≥10 USD $4.12456
≥100 USD $3.89957
≥500 USD $3.37964
≥1000 USD $3.206342
≥3000 USD $2.877046
Inventory: 74
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount, Wettable Flank
Package / Case 28-WFQFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~125°C
Series Automotive, AEC-Q100
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 28
Additional Feature ALSO HAS 3.3V FIXED OUTPUT VOLTAGE
Technology BICMOS
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Function Step-Down
Number of Outputs 2
Output Voltage 5V
Output Type Transistor Driver
Input Voltage-Nom 14V
Analog IC - Other Type DUAL SWITCHING CONTROLLER
Output Configuration Positive
Voltage - Supply (Vcc/Vdd) 3.5V~36V
Control Features Current Limit, Enable
Input Voltage (Min) 3.5V
Topology Buck
Control Mode CURRENT-MODE
Frequency - Switching 220kHz~2.2MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Duty Cycle (Max) 99%
Output Phases 1
Dimensions
Height Seated (Max) 0.8mm
Length 5mm
Width 5mm
Compliance
RoHS Status ROHS3 Compliant
