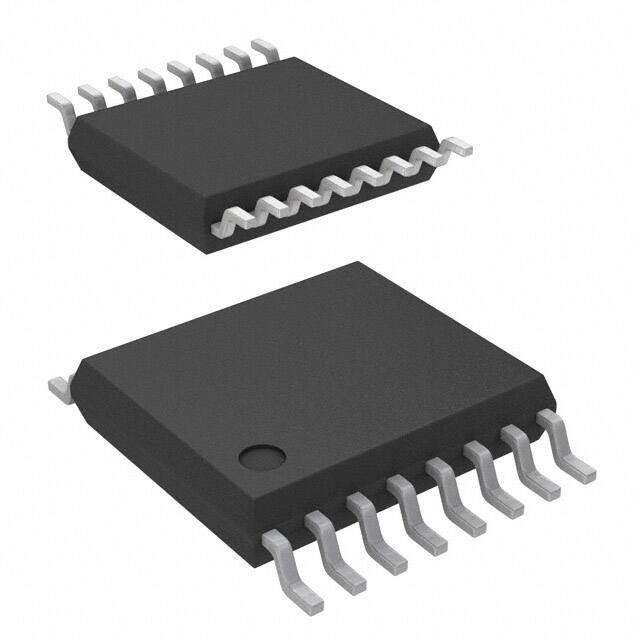

MAX15004BAUE/V+
RoHS
RoHS compliant
RoHS compliantPackage 16-TSSOP (0.173, 4.40mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
MAX15004 Boost Flyback SEPIC Tube Automotive AEC-Q100 DC to DC switching controller 1A 5mm 100V 15kHz~500kHz
PDF
/
Inventory: 1977
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4.4mm
Length 5mm
Technical
Clock Sync Yes
Max Duty Cycle 50 %
Max Frequency 1MHz
Switcher Configuration SINGLE
Synchronous Rectifier No
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 15kHz~500kHz
Control Mode CURRENT-MODE
Topology Boost, Flyback, SEPIC
Input Voltage (Min) 4.5V
Control Features Enable, Frequency Control, Soft Start
Voltage - Supply (Vcc/Vdd) 4.5V~40V
Output Current 1A
Output Configuration Positive, Isolation Capable
Analog IC - Other Type SWITCHING CONTROLLER
Input Voltage-Nom 14V
Operating Supply Voltage 40V
Output Type Transistor Driver
Output Voltage 100V
Number of Outputs 1
Function Step-Up, Step-Up/Step-Down
Base Part Number MAX15004
Terminal Pitch 0.65mm
Terminal Form GULL WING
Terminal Position DUAL
Technology BICMOS
Subcategory Switching Regulator or Controllers
Additional Feature IT CAN ALSO OPERATE WITH VOLTAGE MODE
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series Automotive, AEC-Q100
Published 2012
Packaging Tube
Operating Temperature -40°C~125°C TJ
Physical
Number of Pins 16
Package / Case 16-TSSOP (0.173, 4.40mm Width) Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
