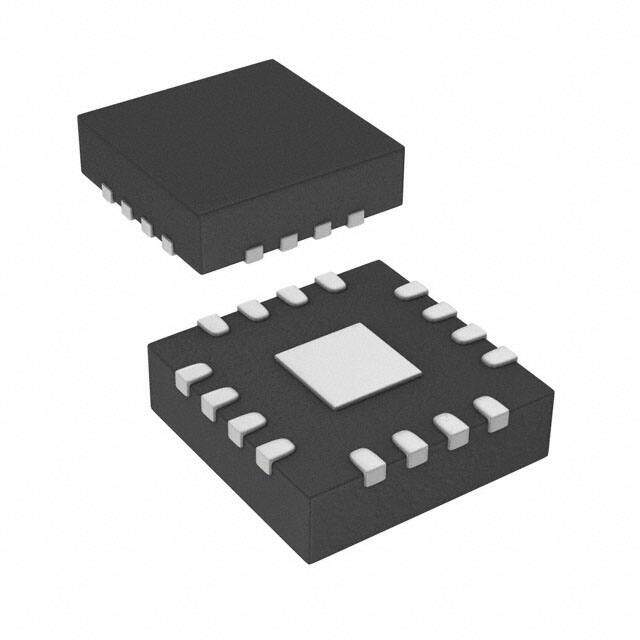

IR3710MTRPBF
RoHS
/
Package 16-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
IR3710MPBF Buck Tape & Reel (TR) Positive DC to DC switching controller 10ns 1.2mA 830mum 12V
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5456
≥1 USD $0.5456
Inventory: 1121
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Width 2.9972mm
Length 2.9972mm
Height 830μm
Technical
Clock Sync No
Switcher Configuration PUSH-PULL
Min Output Voltage 500mV
Fall Time (Typ) 10 ns
Synchronous Rectifier Yes
Rise Time 10ns
Control Technique PULSE WIDTH MODULATION
Frequency - Switching Up to 1MHz
Topology Buck
Max Output Voltage 12V
Control Features Current Limit, Enable, Power Good, Soft Start
Voltage - Supply (Vcc/Vdd) 3V~28V
Output Current 20A
Output Configuration Positive
Operating Supply Current 1.2mA
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 12.6V
Operating Supply Voltage 7V
Max Output Current 22μA
Output Type Transistor Driver
Output Voltage 12V
Number of Outputs 1
Function Step-Down
Base Part Number IR3710MPBF
Frequency 1MHz
Terminal Pitch 0.5mm
Terminal Position QUAD
Voltage - Rated 12V
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature 0°C~125°C TJ
Physical
Number of Pins 16
Package / Case 16-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
Alternative Model
