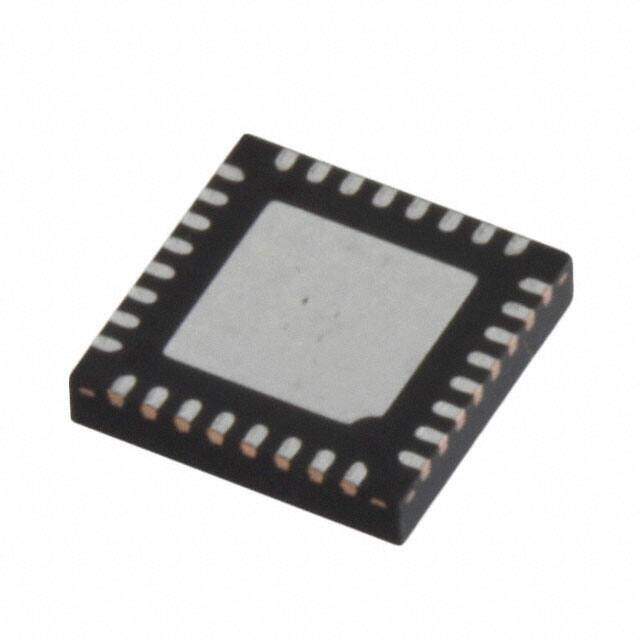

IR3623MTRPBF
RoHS
/
Package 32-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
IR3623MPBF Buck Tape & Reel (TR) e3 DC to DC switching controller 17mA 939.8mum 5.4V 200kHz~1.2MHz
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.2848
≥1 USD $1.2848
Inventory: 1563
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 5mm
Length 4.9784mm
Height 939.8μm
Technical
Clock Sync Yes
Max Duty Cycle 85 %
Max Frequency 1.2MHz
Switcher Configuration SINGLE
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 200kHz~1.2MHz
Control Mode VOLTAGE-MODE
Topology Buck
Input Voltage (Min) 8.5V
Control Features Current Limit, Enable, Frequency Control, Power Good, Sequencing, Soft Start, Tracking
Max Supply Current 17mA
Voltage - Supply (Vcc/Vdd) 8.5V~14.5V
Output Current 200mA
Output Configuration Positive
Analog IC - Other Type DUAL SWITCHING CONTROLLER
Input Voltage-Nom 12V
Operating Supply Voltage 14.5V
Output Type PWM Signal
Output Voltage 5.4V
Number of Outputs 2
Function Step-Down
Base Part Number IR3623MPBF
Time@Peak Reflow Temperature-Max (s) 30
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Subcategory Switching Regulator or Controllers
Terminal Finish MATTE TIN
ECCN Code EAR99
Number of Terminations 32
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
JESD-609 Code e3
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Number of Pins 32
Package / Case 32-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount, Through Hole
Supply Chain
Factory Lead Time 16 Weeks
Alternative Model
