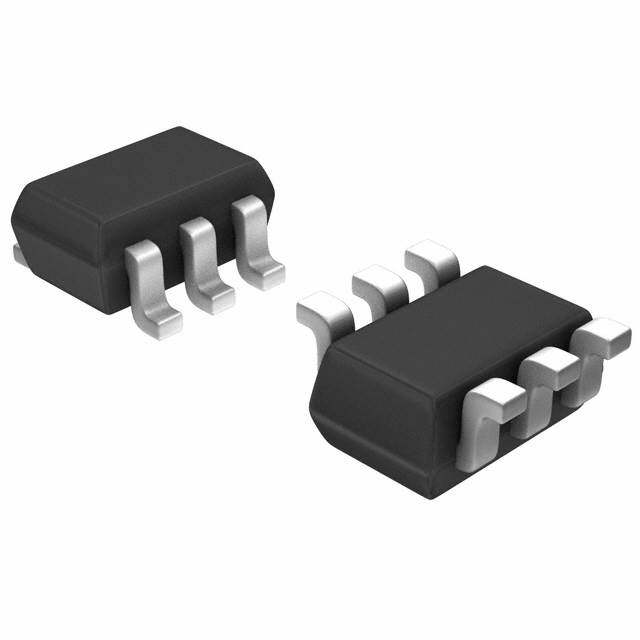

TL431BQDCKTE4
RoHS
/
Package SC
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description
EAR99 SC ACTIVE (Last Updated: 1day ago) Nickel/Palladium/Gold (Ni/Pd/Au) voltage reference device 700muA 37V 92ppm/C 0.5%
PDF
/
Buying Options
Total Price: USD $7.46
Unit Price: USD $7.464378
≥1 USD $7.464378
≥10 USD $7.041879
≥100 USD $6.643278
≥500 USD $6.267241
≥1000 USD $5.912487
Inventory: 1650
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 900μm
Width 1.25mm
Length 2mm
Height 1.1mm
Technical
Voltage Reference 36V
Current - Cathode 700μA
Temp Coef of Voltage-Max 92 ppm/°C
Reference Type Adjustable, Shunt
Max Input Voltage 37V
Voltage - Output 36V
Max Output Voltage 36V
Current - Output 100mA
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Trim/Adjustable Output YES
Number of Channels 1
Supply Voltage-Min (Vsup) 2.495V
Temperature Grade AUTOMOTIVE
Max Output Current 100mA
Output Voltage 2.495V
Number of Outputs 1
Pin Count 6
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BIPOLAR
Subcategory Voltage References
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Temperature Coefficient 34 ppm/°C
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e4
Tolerance 0.5%
Physical
Number of Pins 6
Surface Mount YES
Package / Case SC
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
