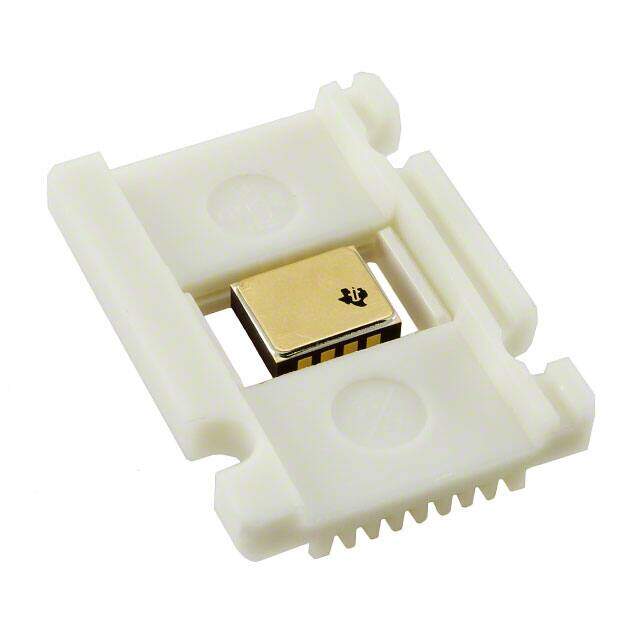

REF5025SHKJ

Texas Instruments
RoHS
RoHS RoHS compliant
Package 8-CFlatpack
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description EAR99 REF5025 Tube ACTIVE (Last Updated: 1week ago) voltage reference device 7mA 18V 7.5muVp-p 3ppm/C
PDF
/
Buying Options
Total Price: USD $131.19
Unit Price: USD $131.1904
≥1 USD $131.1904
≥10 USD $125.64992
≥100 USD $122.878624
Inventory: 86
Minimum: 1
-
+

Technical Details

Technical

Max Input Voltage 18V
Reference Voltage 2.5V
Reference Type Series
Min Output Voltage 2.5V
Temp Coef of Voltage-Max 3 ppm/°C
Noise - 0.1Hz to 10Hz 7.5μVp-p
Min Input Voltage 2.7V
Max Output Voltage 2.5V
Quiescent Current 800μA
Current - Output 7mA
Nominal Supply Current 800μA
Voltage - Input 3.25V~18V
Operating Supply Current 1.5mA
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Trim/Adjustable Output YES
Supply Voltage-Min (Vsup) 3.25V
Max Output Current 10mA
Output Type Fixed
Output Voltage 2.5V
Number of Outputs 1
Pin Count 8
Base Part Number REF5025
Terminal Pitch 1.27mm
Number of Functions 1
Terminal Position DUAL
Subcategory Voltage References
Temperature Coefficient 40ppm/°C
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±0.9%
Packaging Tube
Operating Temperature -55°C~210°C TA

Dimensions

Height 1.65mm
Length 6.9mm
Width 5.65mm
Thickness 1.65mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Contains Lead

Physical

Number of Pins 8
Surface Mount YES
Package / Case 8-CFlatpack
Mounting Type Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 1 week ago)
