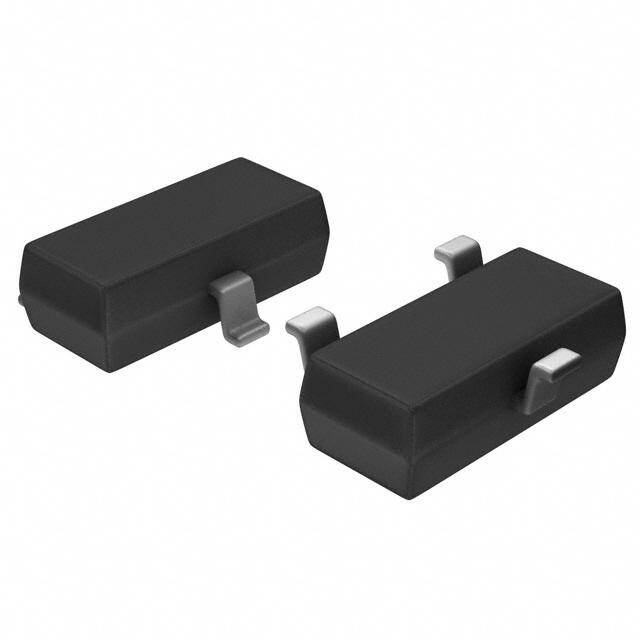

REF2940AIDBZTG4
RoHS
/
Package SOT-23
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description
EAR99 Tape & Reel (TR) Nickel/Palladium/Gold (Ni/Pd/Au) Fixed Series voltage reference device 25mA 5.5V 100ppm/C 2%
PDF
/
Buying Options
Total Price: USD $0.67
Unit Price: USD $0.67165
≥1 USD $0.67165
≥10 USD $0.551
≥100 USD $0.5339
≥500 USD $0.5168
≥1000 USD $0.4997
Inventory: 145715
Minimum: 1
-
+
Technical Details
Physical
Package / Case SOT-23
Surface Mount YES
Number of Pins 3
Technical
Packaging Tape & Reel (TR)
Tolerance 2%
JESD-609 Code e4
Moisture Sensitivity Level (MSL) 1
Number of Terminations 3
ECCN Code EAR99
Temperature Coefficient 35 ppm/°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Subcategory Voltage References
Technology CMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.95mm
Pin Count 3
Number of Outputs 1
Output Voltage 4.096V
Output Type Fixed
Max Output Current 25mA
Supply Voltage-Max (Vsup) 5.5V
Temperature Grade AUTOMOTIVE
Supply Voltage-Min (Vsup) 4.146V
Trim/Adjustable Output NO
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Operating Supply Current 59μA
Nominal Supply Current 42μA
Max Supply Current 50μA
Current - Output 25mA
Quiescent Current 42μA
Max Output Voltage 4.096V
Voltage - Output 4.096V
Min Input Voltage 4.097V
Max Input Voltage 7V
Reference Type Fixed, Series
Min Output Voltage 4.096V
Temp Coef of Voltage-Max 100 ppm/°C
Dimensions
Height 1mm
Length 2.92mm
Width 1.3mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
Alternative Model
