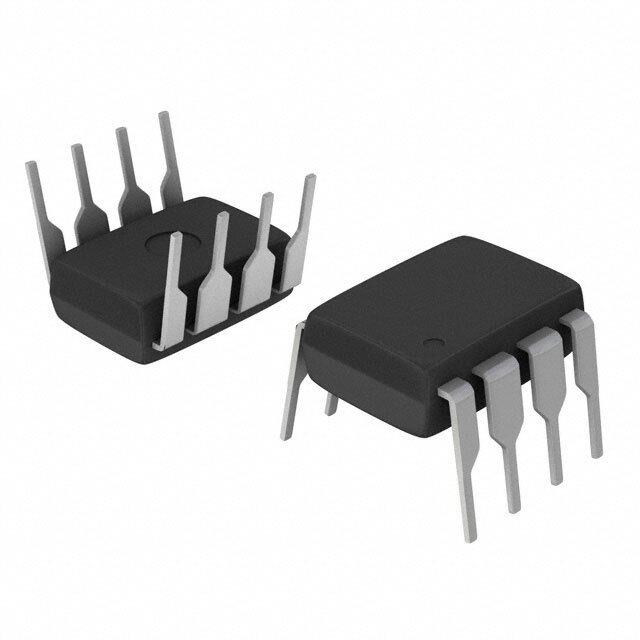

REF02BPG4
RoHS
/
Package PDIP
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description
EAR99 PDIP Nickel/Palladium/Gold (Ni/Pd/Au) OUTPUT CAN BE EXTERNALLY ADJUSTED OVER A +/-6PERCENT RANGE voltage reference device 21mA 40V 85C 0.2%
PDF
/
Buying Options
Total Price: USD $5.37
Unit Price: USD $5.37035
≥1 USD $5.37035
≥10 USD $4.4061
≥100 USD $4.26835
≥500 USD $4.1306
≥1000 USD $3.99285
Inventory: 10
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Package / Case PDIP
Number of Pins 8
Weight 523.190449mg
Technical
Tolerance 0.2%
JESD-609 Code e4
Number of Terminations 8
ECCN Code EAR99
Temperature Coefficient 4 ppm/°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Additional Feature OUTPUT CAN BE EXTERNALLY ADJUSTED OVER A +/-6 PERCENT RANGE
Subcategory Voltage References
Technology BIPOLAR
Terminal Position DUAL
Number of Functions 1
Supply Voltage 15V
Terminal Pitch 2.54mm
Pin Count 8
Number of Outputs 1
Output Voltage 5V
Temperature Grade INDUSTRIAL
Supply Voltage-Min (Vsup) 8V
Number of Channels 1
Trim/Adjustable Output YES
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Nominal Supply Current 1mA
Max Supply Current 1.4A
Current - Output 21mA
Quiescent Current 1.4mA
Max Output Voltage 5V
Voltage - Output 5V
Min Input Voltage 8V
Max Input Voltage 40V
Reference Type Fixed, Series
Min Output Voltage 4.99V
Voltage Reference 5V
Dimensions
Height 4.57mm
Length 9.81mm
Width 6.35mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
