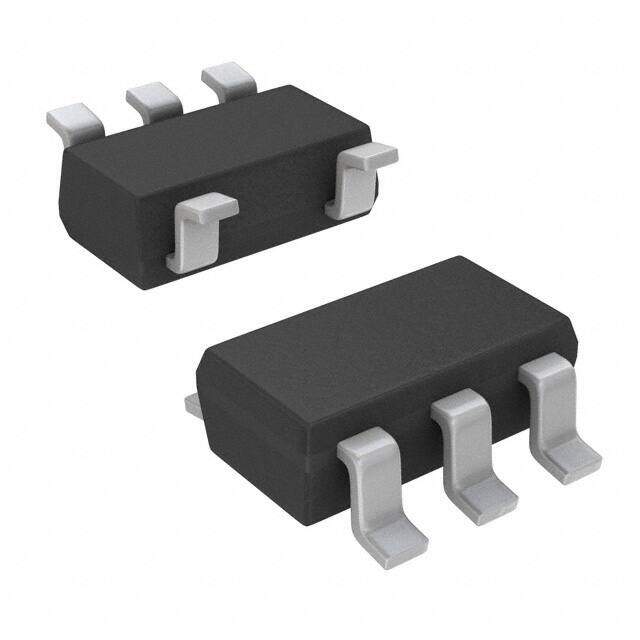

LM4120IM5-4.1
RoHS
/
Package SC-74A, SOT-753
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description
EAR99 LM4120 Tape & Reel (TR) Tin/Lead (Sn/Pb) voltage reference device 5mA 180mV 36muVp-p -40C~85C TA
PDF
/
Inventory: 939
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 2.92mm
Technical
Noise - 10Hz to 10kHz 36μVp-p
Noise - 0.1Hz to 10Hz 20μVp-p
Min Output Voltage 4.096V
Dropout Voltage 180mV
Reference Type Series
Reference Voltage 4.1V
Max Input Voltage 14V
Min Input Voltage 2V
Max Output Voltage 4.096V
Quiescent Current 160μA
Nominal Supply Current 160μA
Voltage - Input 2V~12V
Operating Supply Current 275μA
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Min Supply Voltage 14V
Max Supply Voltage 3.3V
Trim/Adjustable Output NO
Number of Channels 1
Max Output Current 5mA
Output Type Fixed
Output Voltage 4.096V
Number of Outputs 1
Pin Count 5
Base Part Number LM4120
Supply Voltage 5.1V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BIPOLAR
Max Power Dissipation 350mW
Subcategory Voltage References
Terminal Finish Tin/Lead (Sn/Pb)
Temperature Coefficient 50ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Tolerance ±0.5%
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 5
Package / Case SC-74A, SOT-753
Mounting Type Surface Mount
Mount Surface Mount
Alternative Model
