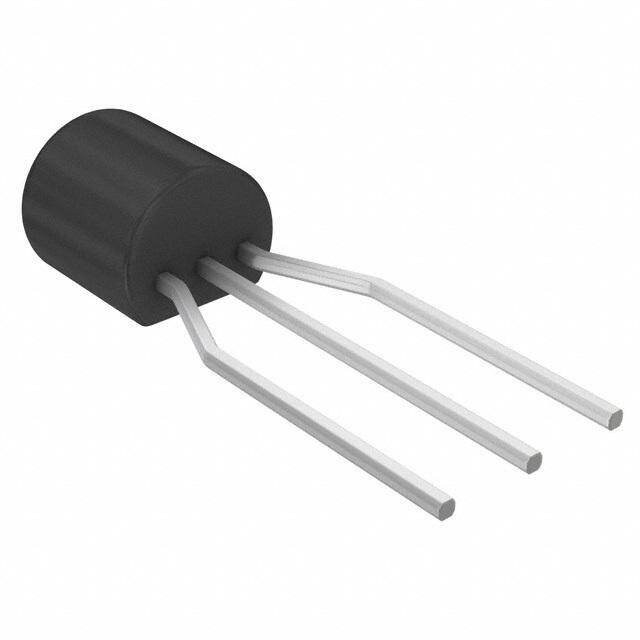

LM4041DILPRE3
RoHS
/
Package TO-92
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description
EAR99 Tape & Reel (TR) Matte Tin (Sn) Adjustable Shunt voltage reference device 80muA 15V 125C 1%
PDF
/
Inventory: 6470
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case TO-92
Surface Mount NO
Number of Pins 3
Weight 213.188414mg
Technical
Packaging Tape & Reel (TR)
Tolerance 1%
JESD-609 Code e3
Pbfree Code yes
Number of Terminations 3
ECCN Code EAR99
Temperature Coefficient 150 ppm/°C
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Subcategory Voltage References
Technology BIPOLAR
Terminal Position BOTTOM
Terminal Form WIRE
Number of Functions 1
Terminal Pitch 1.27mm
Pin Count 3
Number of Outputs 1
Output Voltage 1.233V
Output Type Adjustable
Max Output Current 12mA
Temperature Grade INDUSTRIAL
Trim/Adjustable Output YES
Analog IC - Other Type TWO TERMINAL VOLTAGE REFERENCE
Current - Output 12mA
Max Output Voltage 10V
Voltage - Output 10V
Max Input Voltage 15V
Reference Type Adjustable, Shunt
Min Output Voltage 1.233V
Current - Cathode 80μA
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
