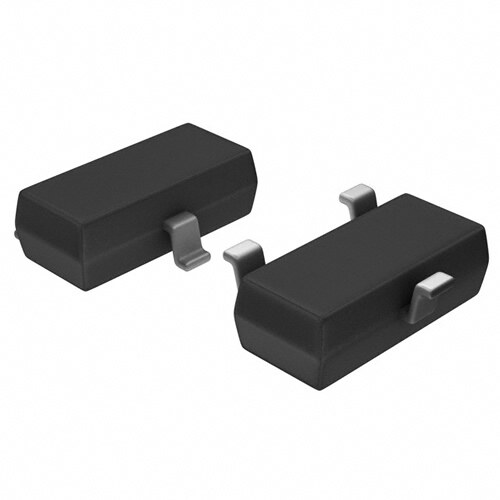

LM4040B50IDBZTG4
RoHS
/
Package TO-236
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description
Contains Lead GULL WING RoHS Compliant DUAL voltage reference device 2.92mm 0.2% 85C 5V
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.895598
≥1 USD $0.895598
≥10 USD $0.844911
≥100 USD $0.79708
≥500 USD $0.75196
≥1000 USD $0.709395
Inventory: 977
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 2.92mm
Technical
Current - Cathode 89μA
Reference Type Shunt
Voltage - Output 5V
Current - Output 15mA
Analog IC - Other Type TWO TERMINAL VOLTAGE REFERENCE
Trim/Adjustable Output NO
Number of Channels 1
Temperature Grade INDUSTRIAL
Max Output Current 15mA
Output Voltage 5V
Number of Outputs 1
Pin Count 3
Terminal Pitch 0.95mm
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BIPOLAR
Subcategory Voltage References
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Temperature Coefficient 15 ppm/°C
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e4
Tolerance 0.2%
Packaging Tape & Reel (TR)
Physical
Number of Pins 3
Surface Mount YES
Package / Case TO-236
