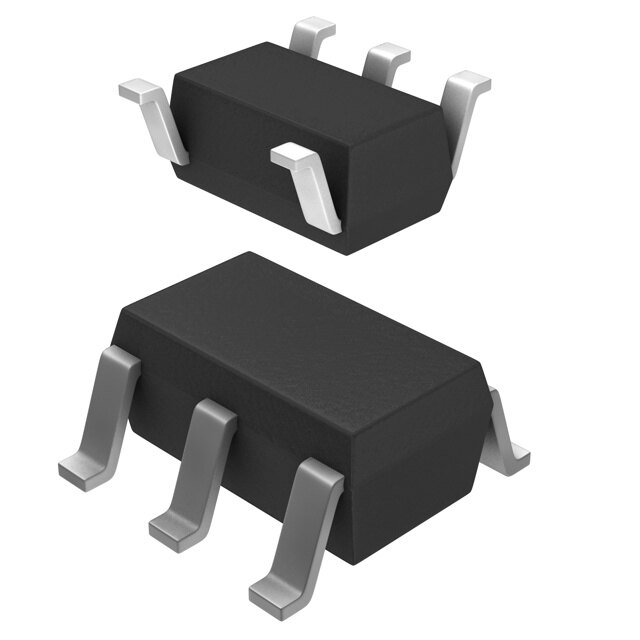

SC431LC5SK-2TR image
Favorite
SC431LC5SK-2TR image
Favorite

SC431LC5SK-2TR

Semtech Corporation
RoHS
/
Package SC-74A, SOT-753
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description EAR99 SC431 Tape & Reel (TR) TIN LEAD voltage reference device 100muA 1.24V 403.226ppm/C 1.45mm
PDF
/
Inventory: 6671
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status Non-RoHS Compliant

Dimensions

Width 1.6mm
Length 2.9mm
Height Seated (Max) 1.45mm

Technical

Current - Cathode 100μA
Temp Coef of Voltage-Max 403.226 ppm/°C
Output Voltage-Min 1.215V
Voltage - Output (Max) 16V
Reference Type Shunt
Voltage - Output (Min/Fixed) 1.24V
Current - Output 100mA
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Trim/Adjustable Output YES
Output Type Adjustable
Output Voltage 1.24V
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-PDSO-G5
Pin Count 5
Base Part Number SC431
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.95mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Technology BIPOLAR
Subcategory Voltage References
HTS Code 8542.39.00.01
Terminal Finish TIN LEAD
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Tolerance ±2%
Packaging Tape & Reel (TR)
Operating Temperature 0°C~70°C TA

Physical

Surface Mount YES
Package / Case SC-74A, SOT-753
Mounting Type Surface Mount
