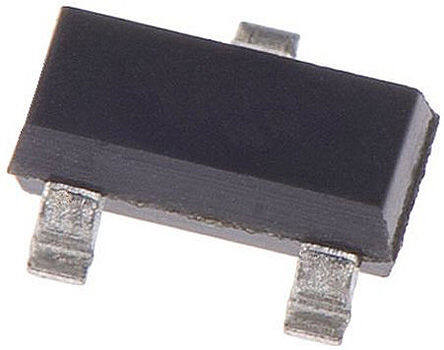

LM4040DTB-409GT3
RoHS
/
Package SOT-23
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description
Surface Mount Lead Free GULL WING RoHS Compliant voltage reference device 1.12mm 150ppm/C 4.096V 15mA
PDF
/
Inventory: 8195
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Lifecycle Status LAST SHIPMENTS (Last Updated: 2 days ago)
Physical
Mount Surface Mount
Package / Case SOT-23
Number of Pins 3
Technical
Packaging Tape & Reel
Published 2012
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1
Number of Terminations 3
ECCN Code EAR99
Temperature Coefficient 30 ppm/°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Voltage References
Technology BIPOLAR
Terminal Position DUAL
Terminal Form GULL WING
Number of Functions 1
Terminal Pitch 0.95mm
Pin Count 3
Number of Outputs 1
Output Voltage 4.096V
Max Output Current 15mA
Temperature Grade INDUSTRIAL
Trim/Adjustable Output NO
Analog IC - Other Type TWO TERMINAL VOLTAGE REFERENCE
Max Output Voltage 4.096V
Voltage - Output 4.096V
Halogen Free Halogen Free
Reference Type Fixed, Shunt
Voltage Tolerance-Max 1%
Temp Coef of Voltage-Max 150 ppm/°C
Dimensions
Height 1.12mm
Length 3.04mm
Width 1.4mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
