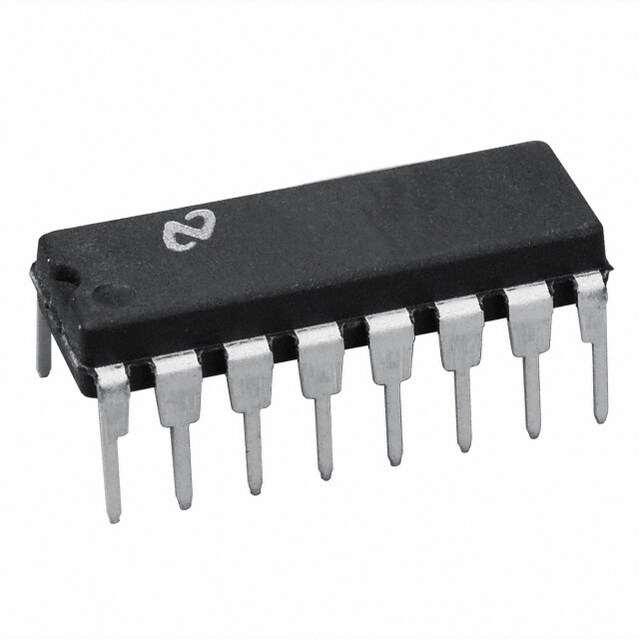

LM13600AN
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description
Contains Lead OPERATIONAL AMPLIFIER THROUGH-HOLE Non-RoHS Compliant voltage reference device 50V/us 5.08mm 70C 1000muV
PDF
/
Inventory: 6233
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Height Seated (Max) 5.08mm
Technical
Common-mode Reject Ratio-Min 80 dB
Input Offset Voltage-Max 1000μV
Bias Current-Max (IIB) @25C 5μA
Frequency Compensation YES
Low-Offset NO
Average Bias Current-Max (IIB) 5μA
Unity Gain BW-Nom 2000 kHz
Neg Supply Voltage-Nom (Vsup) -15V
Common Mode Rejection Ratio 110 dB
Amplifier Type OPERATIONAL AMPLIFIER
Architecture TRANSCONDUCTANCE
Slew Rate 50 V/us
Number of Channels 2
Temperature Grade COMMERCIAL
Power Supplies +-15V
Operating Temperature (Max) 70°C
Qualification Status Not Qualified
JESD-30 Code R-PDIP-T16
Pin Count 16
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 15V
Number of Functions 2
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form THROUGH-HOLE
Terminal Position DUAL
Technology BIPOLAR
Subcategory Operational Amplifier
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 16
Part Status Discontinued
JESD-609 Code e0
Published 2000
Physical
Surface Mount NO
