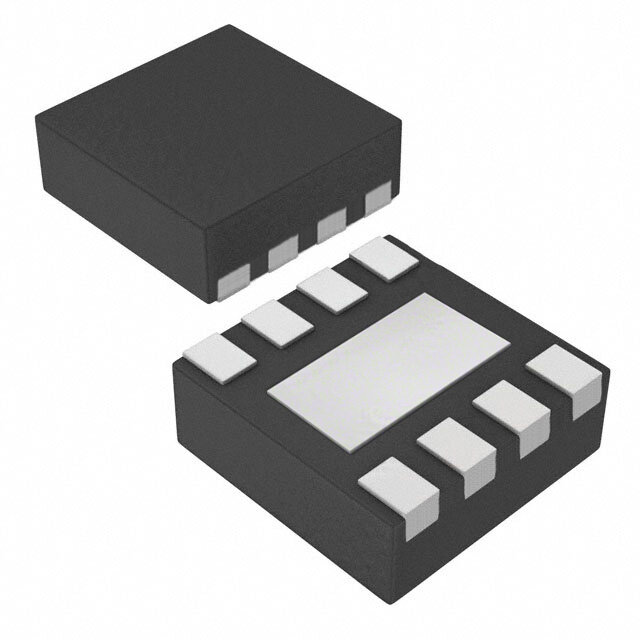

MCP1501T-10E/RW
RoHS
RoHS compliant
RoHS compliantPackage 8-WFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description
EAR99 Tape & Reel (TR) 2016 Matte Tin (Sn) - annealed voltage reference device 20mA 5.5V 27muVrms 50ppm/C
PDF
/
Buying Options
Total Price: USD $0.78
Unit Price: USD $0.7832
≥1 USD $0.7832
≥10 USD $0.6512
≥100 USD $0.5896
Inventory: 1448
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-WFDFN Exposed Pad
Technical
Operating Temperature -40°C~125°C TA
Packaging Tape & Reel (TR)
Published 2016
Tolerance ±0.1%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Temperature Coefficient 50ppm/°C
Terminal Finish Matte Tin (Sn) - annealed
HTS Code 8542.39.00.01
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 30
JESD-30 Code S-PDSO-N8
Number of Outputs 1
Output Voltage 1.024V
Output Type Fixed
Supply Voltage-Max (Vsup) 5.5V
Supply Voltage-Min (Vsup) 1.7V
Trim/Adjustable Output NO
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Operating Supply Current 550μA
Voltage - Input 1.65V~5.5V
Current - Output 20mA
Reference Type Series
Min Output Voltage 1.024V
Temp Coef of Voltage-Max 50 ppm/°C
Noise - 0.1Hz to 10Hz 14μVrms
Noise - 10Hz to 10kHz 27μVrms
