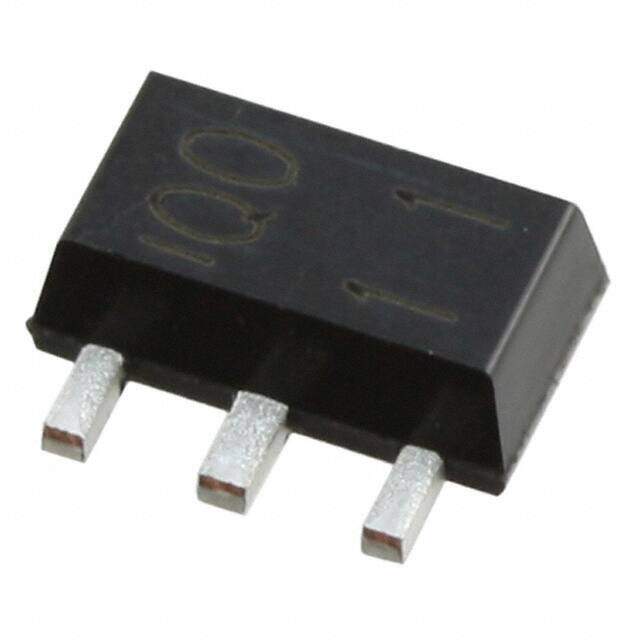

SPX431AM1-L/TR
RoHS
RoHS compliant
RoHS compliantPackage TO-243AA
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description
EAR99 Tape & Reel (TR) 2006 Matte Tin (Sn) voltage reference device 1mA 36V 79.904ppm/C 1.6mm
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.27645
≥1 USD $0.27645
≥10 USD $0.22705
≥100 USD $0.2204
≥500 USD $0.2128
≥1000 USD $0.20615
Inventory: 28512
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case TO-243AA
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TA
Packaging Tape & Reel (TR)
Published 2006
Tolerance ±0.5%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 3
ECCN Code EAR99
Temperature Coefficient 30ppm/°C
Terminal Finish Matte Tin (Sn)
HTS Code 8542.39.00.01
Terminal Position SINGLE
Terminal Form FLAT
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 1.5mm
Time@Peak Reflow Temperature-Max (s) 40
JESD-30 Code R-PSSO-F3
Number of Outputs 1
Qualification Status Not Qualified
Output Voltage 2.503V
Output Type Adjustable
Supply Voltage-Max (Vsup) 36V
Supply Voltage-Min (Vsup) 2.503V
Trim/Adjustable Output YES
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Current - Output 150mA
Voltage - Output (Min/Fixed) 2.503V
Reference Type Shunt
Voltage - Output (Max) 36V
Output Voltage-Min 2.49V
Temp Coef of Voltage-Max 79.904 ppm/°C
Current - Cathode 1mA
Dimensions
Height Seated (Max) 1.6mm
Length 4.5mm
Width 2.5mm
Compliance
RoHS Status RoHS Compliant
