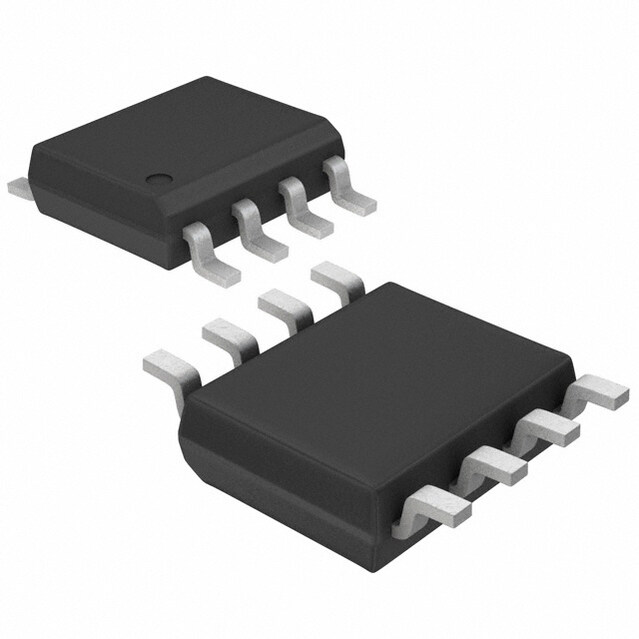

MAX6194CESA+T
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description
EAR99 SOIC 2012 Matte Tin (Sn) voltage reference device 500muA 13.5V 85C 4.9mm
PDF
/
Buying Options
Total Price: USD $8.59
Unit Price: USD $8.585802
≥1 USD $8.585802
≥10 USD $8.099812
≥100 USD $7.641337
≥500 USD $7.208813
≥1000 USD $6.800768
Inventory: 7851
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case SOIC
Technical
Published 2012
JESD-609 Code e3
Pbfree Code yes
Number of Terminations 8
ECCN Code EAR99
Temperature Coefficient 25 ppm/°C
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Voltage References
Technology BIPOLAR
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Pin Count 8
JESD-30 Code R-PDSO-G8
Number of Outputs 1
Output Voltage 4.5V
Max Output Current 500μA
Temperature Grade INDUSTRIAL
Supply Voltage-Min (Vsup) 4.7V
Number of Channels 1
Trim/Adjustable Output NO
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Current - Output 500μA
Quiescent Current 35μA
Voltage - Output 4.5V
Max Input Voltage 13.5V
Reference Type Series
Voltage Tolerance-Max 0.2%
Dimensions
Length 4.9mm
Width 3.9mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
