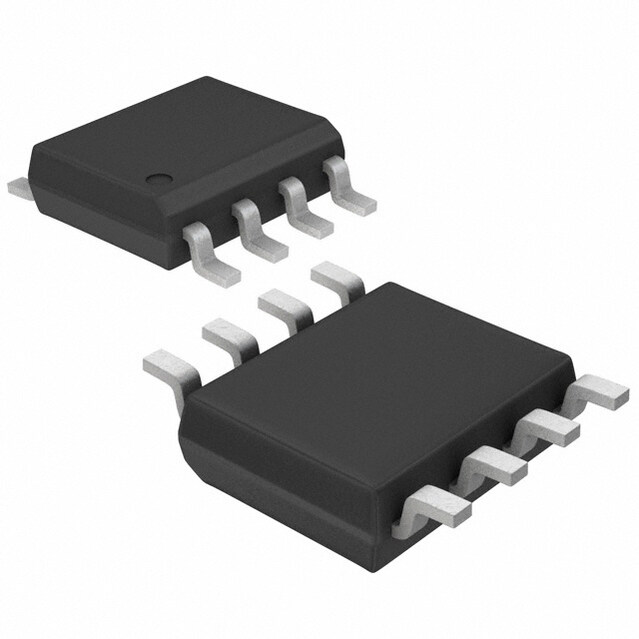

MAX6143BASA10+T
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description
EAR99 SOIC 2012 Matte Tin (Sn) voltage reference device 30mA 40V 125C 0.1%
PDF
/
Inventory: 7385
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case SOIC
Technical
Published 2012
Tolerance 0.1%
JESD-609 Code e3
Pbfree Code yes
Number of Terminations 8
ECCN Code EAR99
Temperature Coefficient 10 ppm/°C
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Subcategory Voltage References
Technology BICMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 15V
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 8
JESD-30 Code R-PDSO-G8
Number of Outputs 1
Output Voltage 10V
Max Output Current 30mA
Supply Voltage-Max (Vsup) 40V
Temperature Grade AUTOMOTIVE
Number of Channels 1
Trim/Adjustable Output YES
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Current - Output 30mA
Quiescent Current 550μA
Voltage - Output 10V
Max Input Voltage 42V
Reference Type Series
Dimensions
Length 4.9mm
Width 3.9mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
