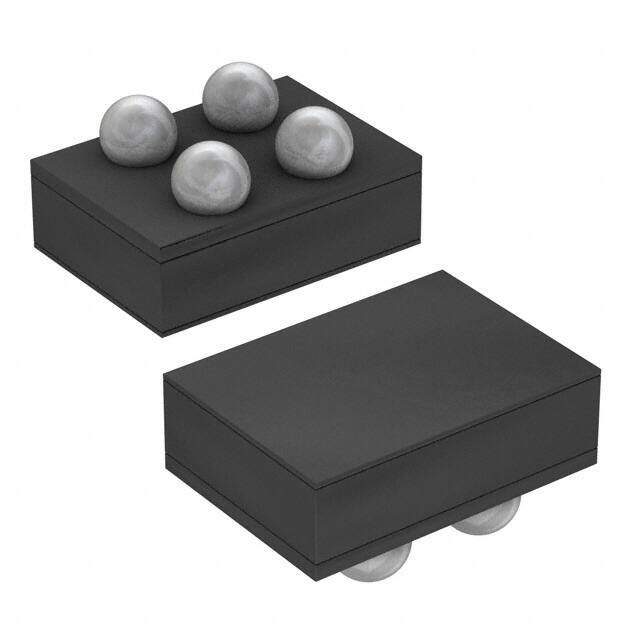

MAX6069CBAWS+T
RoHS
RoHS compliant
RoHS compliantPackage 4-WFBGA, WLBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description
EAR99 MAX6069 Tape & Reel (TR) Shunt voltage reference device 2mA 2.5V 60muVp-p 75ppm/C
PDF
/
Buying Options
Total Price: USD $2.14
Unit Price: USD $2.142314
≥1 USD $2.142314
≥10 USD $2.021055
≥100 USD $1.906655
≥500 USD $1.798726
≥1000 USD $1.69691
Inventory: 1099
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 0.882mm
Length 1.161mm
Height Seated (Max) 0.69mm
Technical
Noise - 0.1Hz to 10Hz 60μVp-p
Temp Coef of Voltage-Max 75 ppm/°C
Output Voltage-Min 2.4875V
Output Voltage-Max 2.5125V
Reference Type Shunt
Voltage - Output (Min/Fixed) 2.5V
Current - Supply 2mA
Analog IC - Other Type TWO TERMINAL VOLTAGE REFERENCE
Trim/Adjustable Output YES
Output Type Fixed
Output Voltage 2.5V
Number of Outputs 1
JESD-30 Code R-PBGA-B4
Base Part Number MAX6069
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code compliant
Terminal Pitch 0.4mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
HTS Code 8542.39.00.01
Temperature Coefficient 50ppm/°C
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±0.5%
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TA
Physical
Surface Mount YES
Package / Case 4-WFBGA, WLBGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
