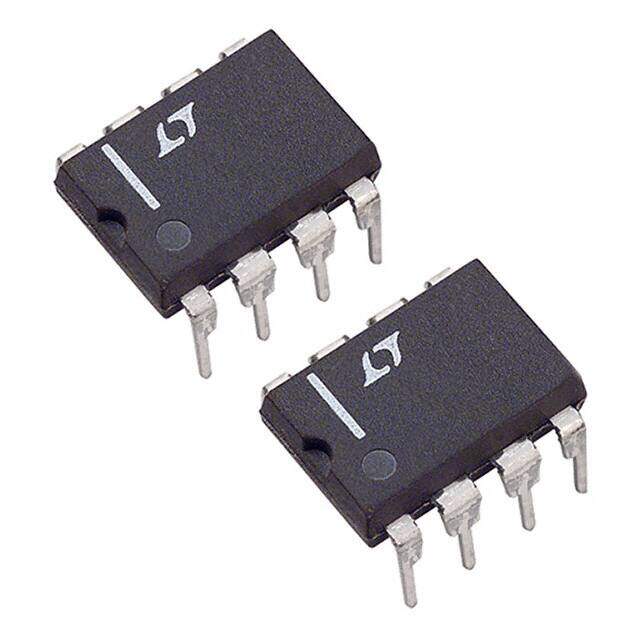

REF02DN8
RoHS
/
Package 8-DIP (0.300, 7.62mm)
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description
R-PDIP-T8 REF02 Tube 2009 voltage reference device 20mA 33V 12muVp-p 250ppm/C
PDF
/
Buying Options
Total Price: USD $3.77
Unit Price: USD $3.767752
≥1 USD $3.767752
≥10 USD $3.554484
≥100 USD $3.353286
≥500 USD $3.163479
≥1000 USD $2.984412
Inventory: 3247
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Through Hole
Package / Case 8-DIP (0.300, 7.62mm)
Surface Mount NO
Technical
Operating Temperature 0°C~70°C TA
Packaging Tube
Published 2009
Tolerance ±2%
JESD-609 Code e0
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
Temperature Coefficient 250ppm/°C
Terminal Finish Tin/Lead (Sn/Pb)
Additional Feature OUTPUT VOLTAGE CAN BE ADJUSTED OVER A +/-3 PERCENT RANGE
Subcategory Voltage References
Technology BIPOLAR
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 15V
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number REF02
Pin Count 8
JESD-30 Code R-PDIP-T8
Number of Outputs 1
Qualification Status Not Qualified
Output Voltage 5V
Output Type Fixed
Supply Voltage-Max (Vsup) 33V
Supply Voltage-Min (Vsup) 8V
Trim/Adjustable Output YES
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Voltage - Input 8V~30V
Current - Output 20mA
Current - Supply 2mA
Voltage - Output (Min/Fixed) 5V
Reference Type Series
Output Voltage-Max 5.1V
Temp Coef of Voltage-Max 250 ppm/°C
Noise - 0.1Hz to 10Hz 12μVp-p
Dimensions
Height Seated (Max) 3.937mm
Width 7.62mm
Compliance
RoHS Status Non-RoHS Compliant
Alternative Model
