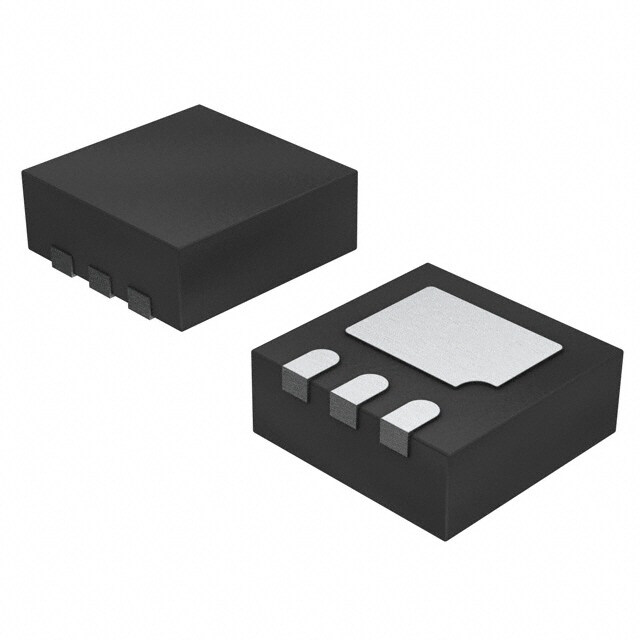

LT6660HCDC-10#TRMPBF image
Favorite
LT6660HCDC-10#TRMPBF image
Favorite

LT6660HCDC-10#TRMPBF

Linear Technology/Analog Devices
RoHS
RoHS RoHS compliant
Package 3-WFSFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description EAR99 LT6660 Tape & Reel (TR) 2004 voltage reference device 20mA 20V 4ppmrms 20ppm/C
PDF
/
Buying Options
Total Price: USD $3.7
Unit Price: USD $3.696
≥1 USD $3.696
≥10 USD $3.32112
≥100 USD $3.13984
≥500 USD $2.721048
≥1000 USD $2.581533
Inventory: 569
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 2mm
Length 2mm
Height Seated (Max) 0.8mm

Technical

Noise - 10Hz to 10kHz 4ppmrms
Noise - 0.1Hz to 10Hz 4ppmp-p
Temp Coef of Voltage-Max 20 ppm/°C
Output Voltage-Max 10.02V
Reference Type Series
Voltage - Output (Min/Fixed) 10V
Current - Supply 350μA
Current - Output 20mA
Voltage - Input 12.5V~30V
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Trim/Adjustable Output NO
Supply Voltage-Min (Vsup) 10.9V
Supply Voltage-Max (Vsup) 20V
Output Type Fixed
Output Voltage 10V
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code S-PSSO-N3
Pin Count 3
Base Part Number LT6660
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.5mm
Supply Voltage 12.5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position SINGLE
HTS Code 8542.39.00.01
Terminal Finish Matte Tin (Sn)
Temperature Coefficient 20ppm/°C
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±0.2%
Published 2004
Packaging Tape & Reel (TR)
Operating Temperature 0°C~70°C TA

Physical

Surface Mount YES
Package / Case 3-WFSFN Exposed Pad
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 8 Weeks
