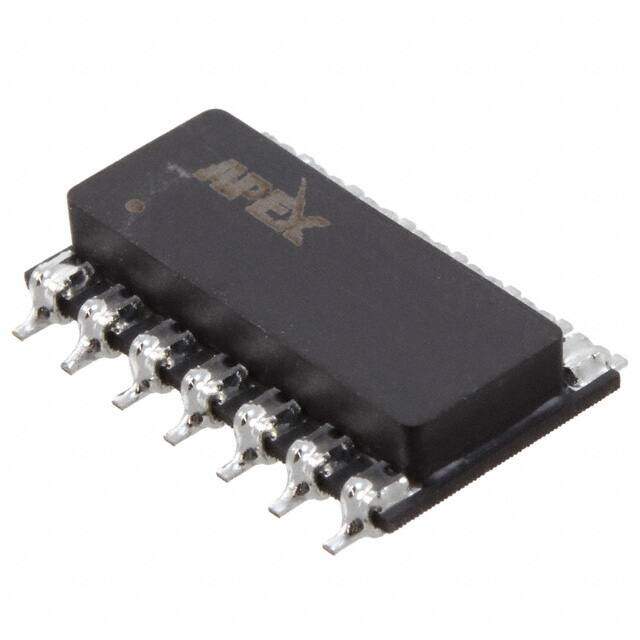

VRE410LS
RoHS
RoHS compliant
RoHS compliantPackage 14-SMD
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description
EAR99 VRE410 Tube 2015 voltage reference device 10mA 22V 6muVp-p 2.2ppm/C
PDF
/
Buying Options
Total Price: USD $96.97
Unit Price: USD $96.969669
≥1 USD $96.969669
≥10 USD $91.480815
≥100 USD $86.30266
≥500 USD $81.417606
≥1000 USD $76.809059
Inventory: 1603
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 14-SMD
Number of Pins 14
Technical
Operating Temperature -40°C~85°C TA
Packaging Tube
Published 2015
Tolerance ±0.02%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Temperature Coefficient 2.2ppm/°C
Number of Functions 1
Supply Voltage 15V
Terminal Pitch 2.555mm
Base Part Number VRE410
Number of Outputs 2
Output Voltage 10V
Output Type Fixed
Supply Voltage-Max (Vsup) 22V
Number of Channels 1
Trim/Adjustable Output YES
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Operating Supply Current 7mA
Voltage - Input 13.5V~22V
Current - Output 10mA
Quiescent Current 7mA
Voltage - Output (Min/Fixed) ±10V
Reference Type Series
Min Output Voltage 10V
Temp Coef of Voltage-Max 2.2 ppm/°C
Noise - 0.1Hz to 10Hz 6μVp-p
Dimensions
Height Seated (Max) 4.59mm
Compliance
RoHS Status RoHS Compliant
