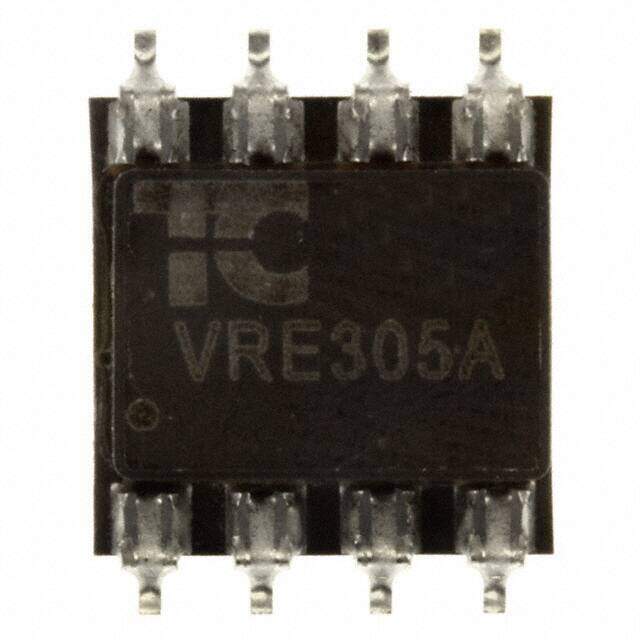

VRE305AS
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD, Flat Lead
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description
EAR99 VRE305 Tube 2015 voltage reference device 10mA 22V 3muVp-p 0.6ppm/C
PDF
/
Buying Options
Total Price: USD $65.8
Unit Price: USD $65.800053
≥1 USD $65.800053
≥10 USD $62.07552
≥100 USD $58.561808
≥500 USD $55.246997
≥1000 USD $52.119801
Inventory: 1160
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-SMD, Flat Lead
Technical
Operating Temperature 0°C~70°C TA
Packaging Tube
Published 2015
Tolerance ±0.01%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Temperature Coefficient 0.6ppm/°C
Terminal Finish Matte Tin (Sn)
HTS Code 8542.39.00.01
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 15V
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number VRE305
Pin Count 8
JESD-30 Code R-PDSO-F8
Number of Outputs 1
Qualification Status Not Qualified
Output Voltage 5V
Output Type Fixed
Supply Voltage-Max (Vsup) 22V
Trim/Adjustable Output YES
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Operating Supply Current 7mA
Voltage - Input 13.5V~22V
Current - Output 10mA
Reference Type Series
Min Output Voltage 5V
Temp Coef of Voltage-Max 0.6 ppm/°C
Noise - 0.1Hz to 10Hz 3μVp-p
Compliance
RoHS Status RoHS Compliant
