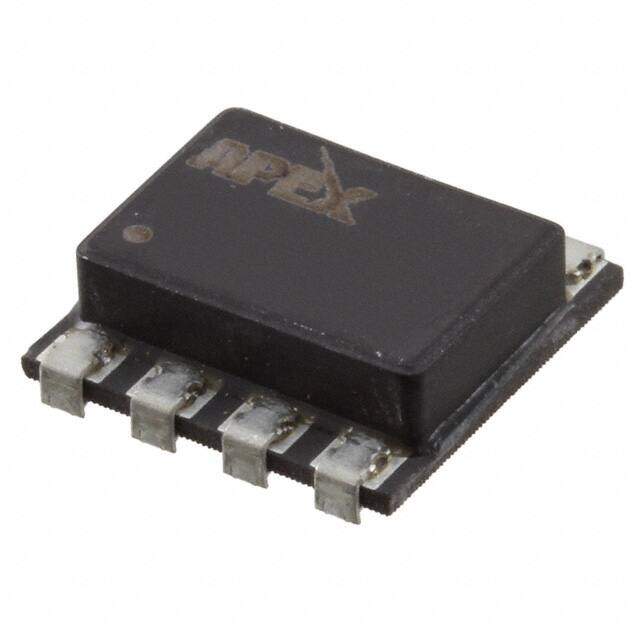

VRE3050JS image
Favorite
VRE3050JS image
Favorite
RoHS
RoHS RoHS compliant
Package 8-SMD, Flat Lead
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description EAR99 VRE3050 Tube 2012 voltage reference device 15mA 36V 5muVrms 0.6ppm/C
PDF
/
Buying Options
Total Price: USD $224.72
Unit Price: USD $224.72
≥1 USD $224.72
≥10 USD $212
≥100 USD $200
≥500 USD $188.67925
Inventory: 800
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height 3.58mm

Technical

Noise - 10Hz to 10kHz 5μVrms
Noise - 0.1Hz to 10Hz 3μVp-p
Temp Coef of Voltage-Max 0.6 ppm/°C
Min Output Voltage 5V
Reference Type Series
Quiescent Current 4mA
Current - Output 15mA
Nominal Supply Current 5mA
Voltage - Input 8V~36V
Operating Supply Current 4mA
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Min Supply Voltage 8V
Max Supply Voltage 36V
Trim/Adjustable Output YES
Number of Channels 1
Output Type Fixed
Output Voltage 5V
Number of Outputs 1
JESD-30 Code R-PDSO-C8
Pin Count 8
Base Part Number VRE3050
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 15V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form C BEND
Terminal Position DUAL
Max Power Dissipation 300mW
Temperature Coefficient 0.6ppm/°C
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±0.01%
Published 2012
Packaging Tube
Operating Temperature -40°C~85°C TA

Physical

Package / Case 8-SMD, Flat Lead
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 13 Weeks
