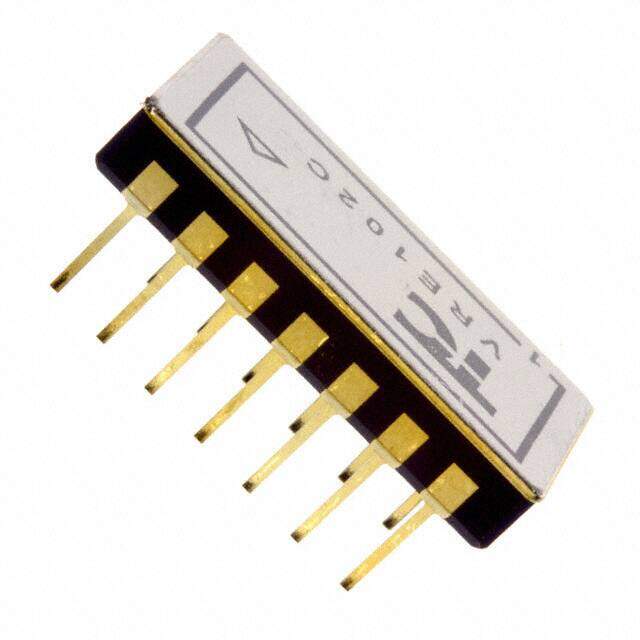

VRE102C
RoHS
RoHS compliant
RoHS compliantPackage 14-CDIP (0.300, 7.62mm)
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description
EAR99 VRE102 Tube 2015 voltage reference device 10mA 22V 6muVp-p 0.72ppm/C
PDF
/
Buying Options
Total Price: USD $369.49
Unit Price: USD $369.4854
≥1 USD $369.4854
Inventory: 408
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Noise - 0.1Hz to 10Hz 6μVp-p
Temp Coef of Voltage-Max 0.72 ppm/°C
Min Output Voltage 10V
Reference Type Series
Voltage - Output (Min/Fixed) ±10V
Current - Output 10mA
Voltage - Input 13.5V~22V
Operating Supply Current 6mA
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Trim/Adjustable Output YES
Supply Voltage-Min (Vsup) 13.5V
Supply Voltage-Max (Vsup) 22V
Output Type Fixed
Output Voltage 10V
Number of Outputs 2
JESD-30 Code R-CDIP-T14
Pin Count 14
Base Part Number VRE102
Supply Voltage 15V
Number of Functions 1
Terminal Position DUAL
HTS Code 8542.39.00.01
Temperature Coefficient 2ppm/°C Typical
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±0.01%
Published 2015
Packaging Tube
Operating Temperature -25°C~85°C TA
Physical
Package / Case 14-CDIP (0.300, 7.62mm)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 13 Weeks
