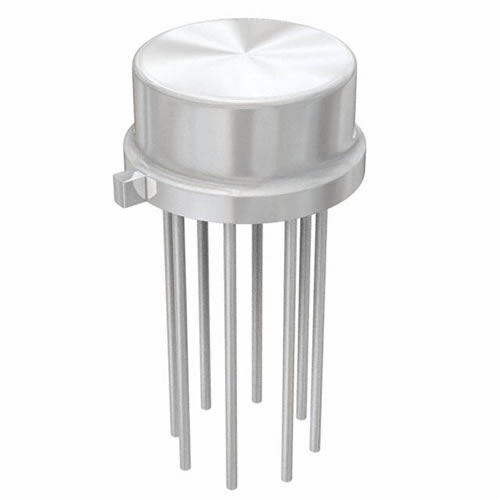

LT1021BMH-5
RoHS
/
Package TO-5
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description
e0 TO-5 PRODUCTION (Last Updated: 2weeks ago) Tin/Lead (Sn/Pb) voltage reference device 10mA 40V 125C 0.5%
PDF
/
Buying Options
Total Price: USD $112.85
Unit Price: USD $112.850083
≥1 USD $112.850083
≥10 USD $106.462352
≥100 USD $100.436181
≥500 USD $94.751116
≥1000 USD $89.387843
Inventory: 1114
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status PRODUCTION (Last Updated: 2 weeks ago)
Physical
Mount Through Hole
Package / Case TO-5
Number of Pins 8
Technical
Tolerance 0.5%
JESD-609 Code e0
Pbfree Code no
Number of Terminations 8
Temperature Coefficient 5 ppm/°C
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Technology BIPOLAR
Terminal Position BOTTOM
Terminal Form WIRE
Number of Functions 1
Supply Voltage 10V
Pin Count 8
Number of Outputs 1
Output Voltage 5V
Temperature Grade MILITARY
Supply Voltage-Min (Vsup) 7.2V
Number of Channels 1
Trim/Adjustable Output YES
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Current - Output 10mA
Quiescent Current 1.5mA
Max Output Voltage 5V
Voltage - Output 5V
Min Input Voltage 8.5V
Max Input Voltage 40V
Reference Type Buried Zener, Series, Shunt
Voltage Reference 5V
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Contains Lead
