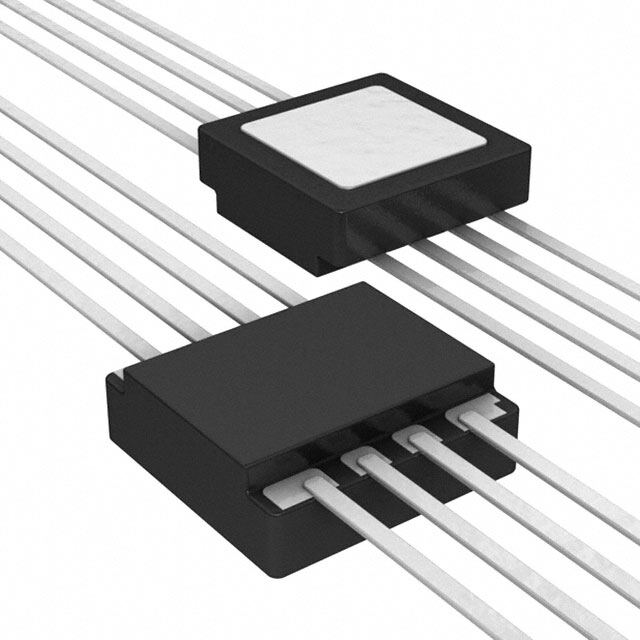

ADR225HFZ
RoHS
RoHS compliant
RoHS compliantPackage 8-CFlatpack
Category Integrated Circuits (ICs) / PMIC - Voltage Reference
Description
EAR99 ADR225 Tube PRODUCTION (Last Updated: 1month ago) voltage reference device 10mA 16V 25muVp-p -40C~210C TA
PDF
/
Buying Options
Total Price: USD $325.31
Unit Price: USD $325.3104
≥1 USD $325.3104
Inventory: 407
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 6.477mm
Length 6.477mm
Height Seated (Max) 2.31mm
Technical
Noise - 0.1Hz to 10Hz 25μVp-p
Min Output Voltage 2.5V
Reference Type Series
Reference Voltage 2.5V
Max Input Voltage 16V
Nominal Supply Current 50μA
Voltage - Input 3.3V~16V
Operating Supply Current 50μA
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Trim/Adjustable Output NO
Supply Voltage-Min (Vsup) 3.3V
Max Output Current 10mA
Output Type Fixed
Output Voltage 2.5V
Number of Outputs 1
Pin Count 8
Base Part Number ADR225
Terminal Pitch 1.27mm
Supply Voltage 5V
Number of Functions 1
Terminal Position DUAL
Technology BICMOS
Subcategory Voltage References
Additional Feature ALSO OPERATES IN SUPPLY VOLTAGE OF 3 TO 15 VOLT
Terminal Finish Gold (Au)
Temperature Coefficient 80ppm/°C
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e4
Tolerance ±2.4%
Packaging Tube
Operating Temperature -40°C~210°C TA
Physical
Number of Pins 8
Package / Case 8-CFlatpack
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time 8 Weeks
