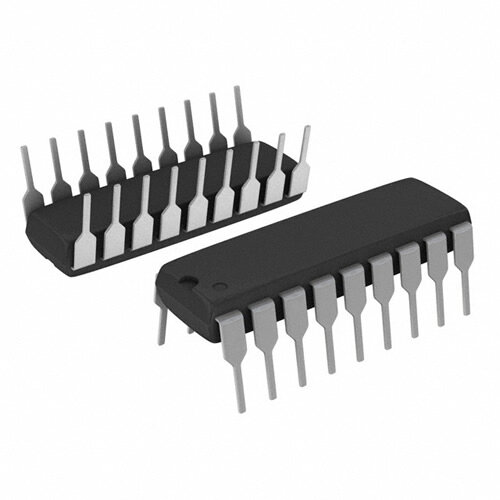

UC2544NG4
RoHS
/
Package PDIP
Category Integrated Circuits (ICs) / PMIC - Supervisors
Description
Contains Lead DUAL POWER SUPPLY SUPPORT CIRCUIT CMOS supervisor 85C 10mA 1W 22.48mm
PDF
/
Inventory: 8449
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Package / Case PDIP
Number of Pins 18
Technical
JESD-609 Code e4
Pbfree Code yes
Number of Terminations 18
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Subcategory Power Management Circuits
Technology CMOS
Terminal Position DUAL
Number of Functions 1
Supply Voltage 10V
Terminal Pitch 2.54mm
Pin Count 18
Temperature Grade OTHER
Number of Channels 1
Max Supply Voltage 40V
Min Supply Voltage 4.5V
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Power Dissipation-Max 1W
Operating Supply Current 7mA
Power Dissipation 1W
Max Supply Current 10mA
Adjustable Threshold NO
Quiescent Current 7mA
Number of Voltages Monitored 1
Min Reset Threshold Voltage 2.45V
Max Reset Threshold Voltage 2.55V
Dimensions
Height Seated (Max) 5.08mm
Length 22.48mm
Width 7.62mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Contains Lead
