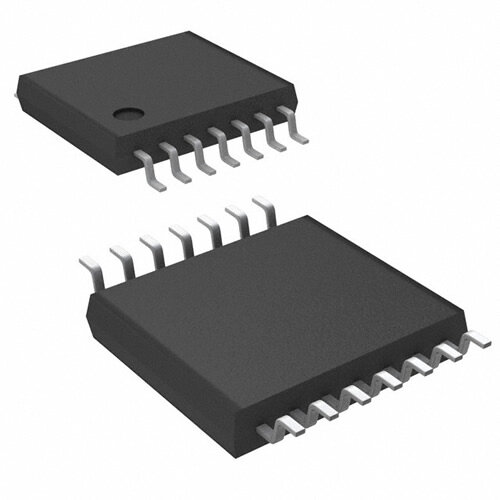

TPS3610U18PWG4
RoHS
/
Package TSSOP
Category Integrated Circuits (ICs) / PMIC - Supervisors
Description
IC BATTRY BKUP SUPRVSOR 14-TSSOP
PDF
/
Buying Options
Total Price: USD $4.31
Unit Price: USD $4.311905
≥1 USD $4.311905
≥10 USD $4.067834
≥100 USD $3.837576
≥500 USD $3.620359
≥1000 USD $3.415435
Inventory: 1163
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 4.4mm
Length 5mm
Technical
Overvoltage Threshold 1.74V
Undervoltage Threshold 1.68V
Max Reset Threshold Voltage 1.74V
Min Reset Threshold Voltage 1.68V
Reset Timeout 60 ms
Voltage - Threshold 1.71V
Reset Active Low
Watchdog Timer Yes
Quiescent Current 20μA
Adjustable Threshold YES
Max Supply Current 40μA
Power Dissipation 700mW
Nominal Supply Current 40μA
Operating Supply Current 40μA
Power Dissipation-Max 700mW
Analog IC - Other Type POWER SUPPLY MANAGEMENT CIRCUIT
Min Supply Voltage 1.65V
Max Supply Voltage 5.5V
Number of Channels 2
Temperature Grade INDUSTRIAL
Number of Elements 1
Operating Supply Voltage 1.8V
Pin Count 14
Terminal Pitch 0.65mm
Supply Voltage 1.8V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Subcategory Power Management Circuits
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e4
Physical
Number of Pins 14
Surface Mount YES
Package / Case TSSOP
