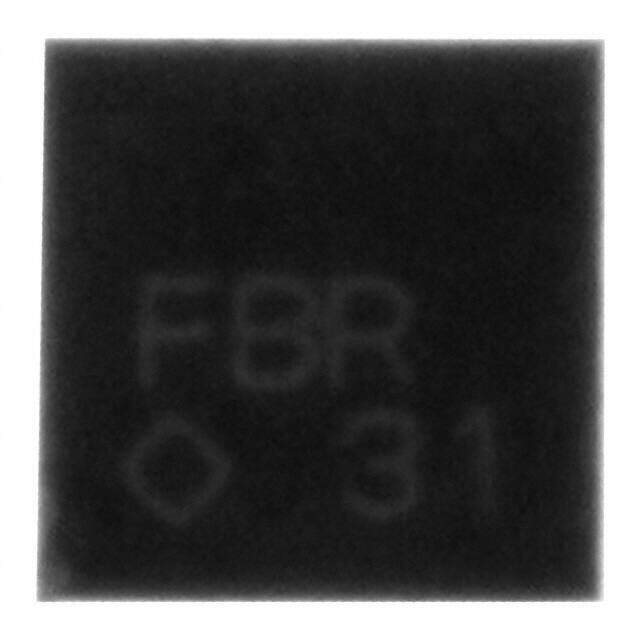

LM3702YDTP-220/NOPB image
Favorite
LM3702YDTP-220/NOPB image
Favorite

LM3702YDTP-220/NOPB

Texas Instruments
RoHS
RoHS RoHS compliant
Package 9-UFBGA
Category Integrated Circuits (ICs) / PMIC - Supervisors
Description Active Low Obsolete BOTTOM BALL Simple Reset/Power-On Reset Supervisor -40C~85C 0.05mA 140ms Minimum 0.5mm
PDF
/
Inventory: 1156
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Technical

Threshold Voltage +2.2V
Supply Current-Max (Isup) 0.05mA
Reset Timeout 140ms Minimum
Number of Voltages Monitored 1
Voltage - Threshold 2.2V
Reset Active Low
Adjustable Threshold NO
Qualification Status Not Qualified
Output Open Drain or Open Collector
Base Part Number LM3702
Terminal Pitch 0.5mm
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Power Management Circuits
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Simple Reset/Power-On Reset
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e1
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Number of Pins 9
Package / Case 9-UFBGA
Mounting Type Surface Mount
Mount Surface Mount
