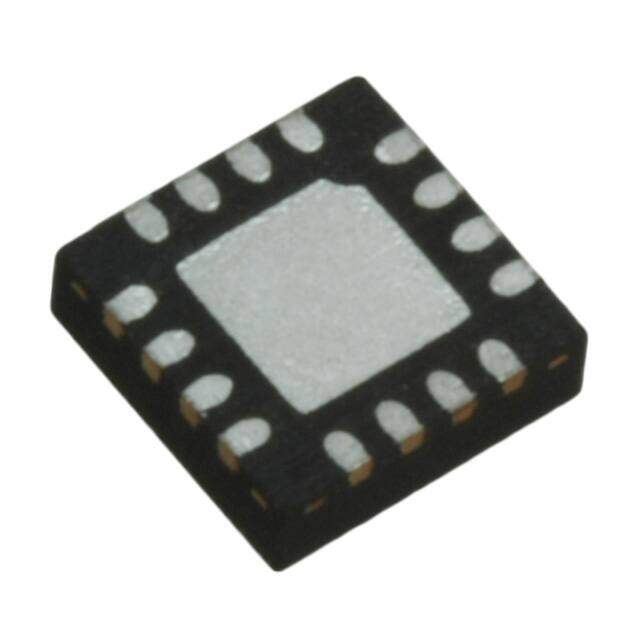

STM1403ATNQ6F
RoHS
RoHS compliant
RoHS compliantPackage 16-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Supervisors
Description
ROHS3Compliant Tape & Reel (TR) STM1403 MANUAL RESET INPUT supervisor 3.3V 3mm 140ms Minimum 320mW
PDF
/
Inventory: 1299
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 3mm
Length 3mm
Technical
Overvoltage Threshold 3.17V
Undervoltage Threshold 3V
Max Reset Threshold Voltage 3.17V
Min Reset Threshold Voltage 3V
Reset Timeout 140ms Minimum
Number of Voltages Monitored 1
Voltage - Threshold 3.08V
Reset Active Low
Watchdog Timer No
Adjustable Threshold NO
Max Supply Current 60μA
Power Dissipation 320mW
Nominal Supply Current 60μA
Operating Supply Current 60μA
Min Supply Voltage 2.2V
Max Supply Voltage 3.6V
Number of Channels 1
Pin Count 16
Output Open Drain or Open Collector
Base Part Number STM1403
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Max Power Dissipation 320mW
Subcategory Power Management Circuits
Additional Feature MANUAL RESET INPUT
Terminal Finish Matte Tin (Sn) - annealed
Type Simple Reset/Power-On Reset
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 16
Package / Case 16-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
