SR1PBBU
RoHS
RoHS compliant

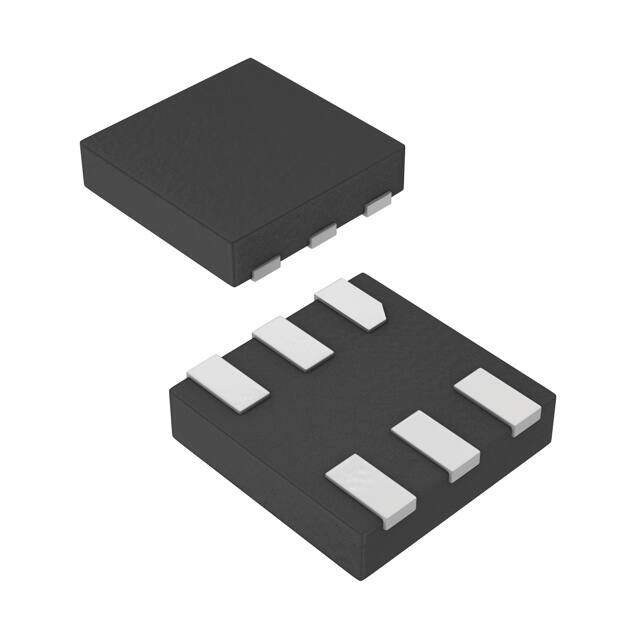

RoHS compliantPackage 6-UDFN
Category Integrated Circuits (ICs) / PMIC - Supervisors
Description
ROHS3Compliant Cut Tape (CT) SR1 Reset Timer supervisor 5.5V 1.5mm 240ms Minimum 1muA
PDF
/
Buying Options
Total Price: USD $3.87
Unit Price: USD $3.87125
≥1 USD $3.87125
≥10 USD $3.1768
≥100 USD $3.07705
≥500 USD $2.97825
≥1000 USD $2.8785
Inventory: 1624
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-UDFN
Number of Pins 6
Weight 21.092045mg
Technical
Operating Temperature -40°C~85°C TA
Packaging Cut Tape (CT)
Series Smart Reset?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Reset Timer
Terminal Position DUAL
Number of Functions 1
Terminal Pitch 0.5mm
Base Part Number SR1
Output Open Drain or Open Collector
Max Supply Voltage 5.5V
Min Supply Voltage 2V
Nominal Supply Current 1μA
Watchdog Timer No
Reset Active Low
Voltage - Threshold Adjustable/Selectable
Number of Voltages Monitored 1
Reset Timeout 240ms Minimum
Min Reset Threshold Voltage 300mV
Max Reset Threshold Voltage 5.5V
Dimensions
Height 600μm
Length 1.5mm
Width 1.05mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
