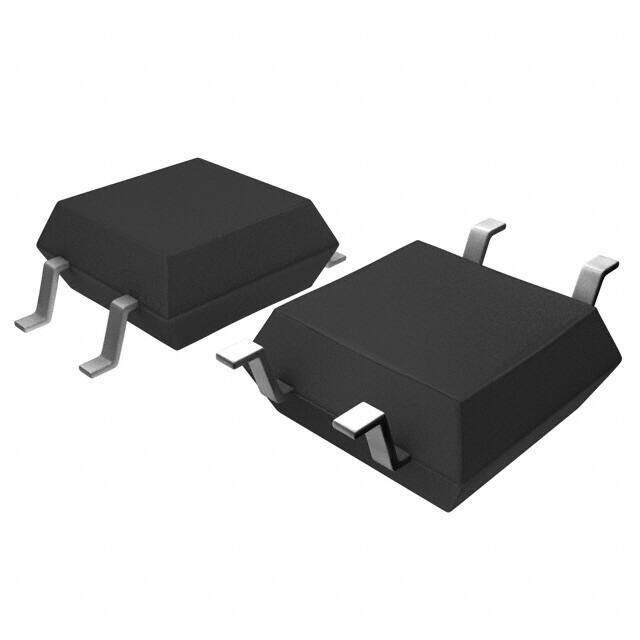

BU4814F-TR image
Favorite
BU4814F-TR image
Favorite

BU4814F-TR

ROHM Semiconductor
RoHS
RoHS RoHS compliant
Package SC-82
Category Integrated Circuits (ICs) / PMIC - Supervisors
Description ROHS3Compliant Tape & Reel (TR) BU4814 Simple Reset/Power-On Reset supervisor 2.4V 2mm 400mW 1.05muA
PDF
/
Inventory: 1209
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Operating Supply Current 550nA
Max Supply Current 1.05μA
Adjustable Threshold NO
Quiescent Current 350nA
Accuracy 1 %
Watchdog Timer No
Reset Active High/Active Low
Voltage - Threshold 1.4V
Number of Voltages Monitored 1
Min Reset Threshold Voltage 1.386V
Max Reset Threshold Voltage 1.414V
Threshold Voltage +1.4V
Undervoltage Threshold 1.386V
Overvoltage Threshold 1.414V
Min Supply Voltage 700mV
Max Supply Voltage 7V
Number of Channels 1
Power Supplies 2.5/5V
Pin Count 4
Output Open Drain or Open Collector
Base Part Number BU4814
Supply Voltage 2.4V
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Technology CMOS
Max Power Dissipation 400mW
Subcategory Power Management Circuits
Type Simple Reset/Power-On Reset
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TA

Dimensions

Length 2mm

Compliance

RoHS Status ROHS3 Compliant

Physical

Number of Pins 4
Package / Case SC-82
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 7 Weeks
