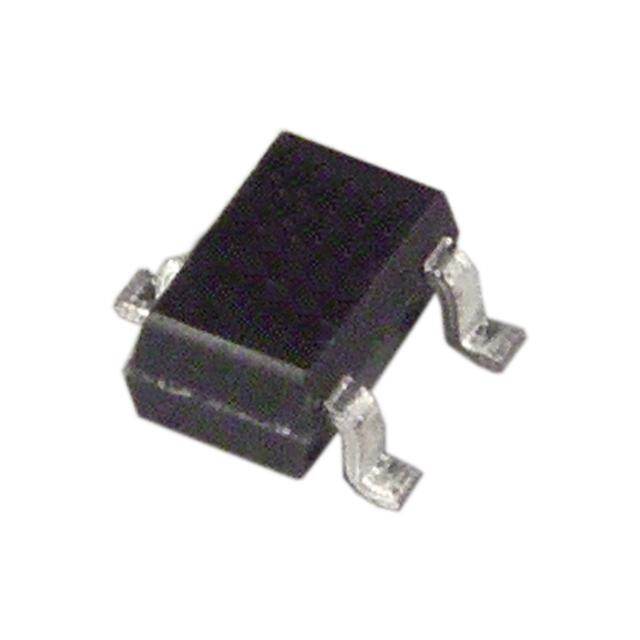

CAT803JSDI-T10
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Supervisors
Description
RoHS Compliant RESET THRESHOLD VOLTAGE IS 4.00V MATTE TIN EAR99 supervisor 5V 2mm 175mW 20muA
PDF
/
Inventory: 3093
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Number of Pins 3
Technical
JESD-609 Code e3
Pbfree Code yes
Number of Terminations 3
ECCN Code EAR99
Terminal Finish MATTE TIN
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Additional Feature RESET THRESHOLD VOLTAGE IS 4.00V
Subcategory Power Management Circuits
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 3
Power Supplies 5V
Temperature Grade INDUSTRIAL
Number of Channels 1
Max Supply Voltage 5.5V
Min Supply Voltage 1.2V
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Power Dissipation-Max 175mW
Operating Supply Current 20μA
Adjustable Threshold NO
Number of Voltages Monitored 1
Supply Current-Max (Isup) 0.02mA
Min Reset Threshold Voltage 3.93V
Max Reset Threshold Voltage 4.06V
Threshold Voltage +4V
Undervoltage Threshold 3.93V
Overvoltage Threshold 4.06V
Dimensions
Length 2mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
