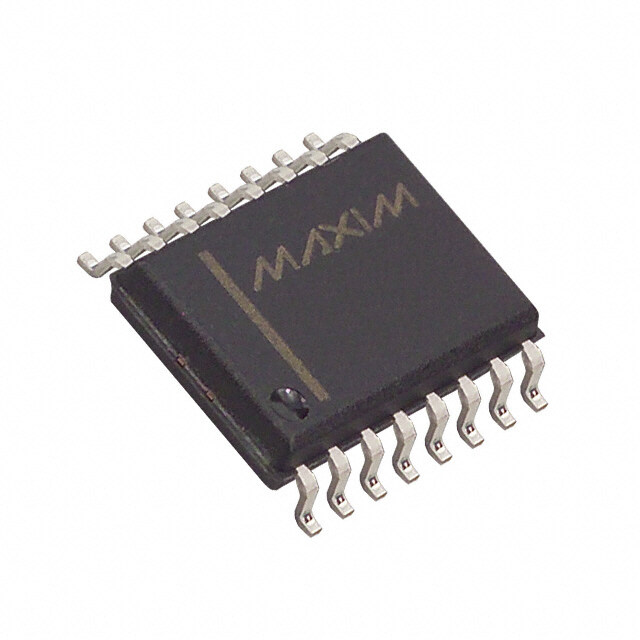

MAX807MEWE+T
RoHS
/
Package SOIC
Category Integrated Circuits (ICs) / PMIC - Supervisors
Description
RoHS Compliant Tape & Reel (TR) Battery Backup Circuit Matte Tin (Sn) supervisor 5V 2.65mm 140ms 762mW
PDF
/
Buying Options
Total Price: USD $9.87
Unit Price: USD $9.865226
≥1 USD $9.865226
≥10 USD $9.306821
≥100 USD $8.780021
≥500 USD $8.283035
≥1000 USD $7.814189
Inventory: 1443
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case SOIC
Technical
Packaging Tape & Reel (TR)
Published 2006
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 16
ECCN Code EAR99
Type Battery Backup Circuit
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Power Management Circuits
Technology BICMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Pin Count 16
Power Supplies 5V
Temperature Grade INDUSTRIAL
Number of Channels 3
Max Supply Voltage 5.5V
Min Supply Voltage 0V
Power Dissipation-Max 762mW
Operating Supply Current 70μA
Adjustable Threshold YES
Watchdog Timer Yes
Reset Active High/Active Low
Voltage - Threshold 4.575V
Number of Voltages Monitored 1
Reset Timeout 140 ms
Min Reset Threshold Voltage 4.35V
Max Reset Threshold Voltage 4.5V
Undervoltage Threshold 4.35V
Overvoltage Threshold 4.5V
Dimensions
Height Seated (Max) 2.65mm
Width 7.5mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
