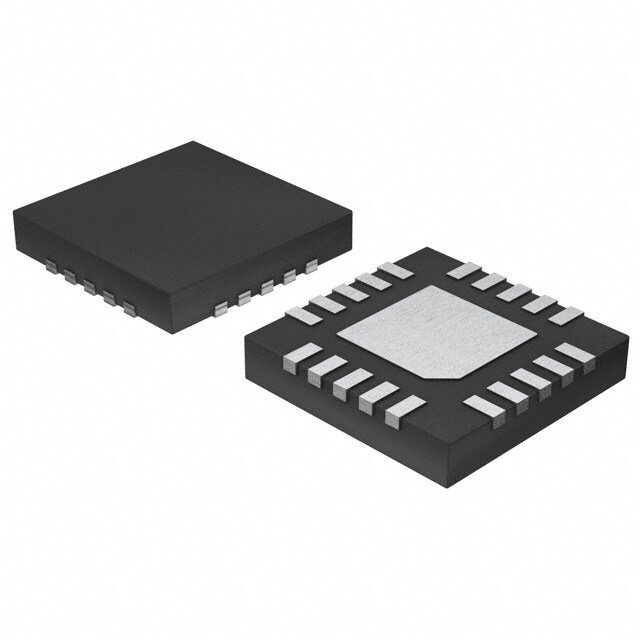

MAX6795TPLD3+T
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Supervisors
Description
RoHS Compliant Tape & Reel (TR) FIXED OR ADJ WATCH DOG TIMEOUT PERIODS Regulator/Supervisor supervisor 14V 5mm 35ms 2.6667W
PDF
/
Buying Options
Total Price: USD $16.29
Unit Price: USD $16.294777
≥1 USD $16.294777
≥10 USD $15.37243
≥100 USD $14.502297
≥500 USD $13.681407
≥1000 USD $12.906996
Inventory: 1112
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Number of Pins 20
Technical
Packaging Tape & Reel (TR)
Published 2012
JESD-609 Code e3
Pbfree Code yes
Number of Terminations 20
ECCN Code EAR99
Type Regulator/Supervisor
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Additional Feature FIXED OR ADJ WATCH DOG TIMEOUT PERIODS
Subcategory Automotive Circuits
Technology BICMOS
Terminal Position QUAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 14V
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) 40
Pin Count 20
Number of Outputs 1
Output Type Adjustable, Fixed
Polarity Positive
Temperature Grade AUTOMOTIVE
Supply Voltage-Min (Vsup) 5V
Number of Channels 1
Power Dissipation-Max 2.6667W
Current - Output 300mA
Adjustable Threshold NO
Voltage - Output 5V
Reset Active Low
Min Input Voltage 5V
Voltage - Threshold 4.625V
Reset Timeout 35 ms
Max Input Voltage 72V
Supply Current-Max (Isup) 0.22mA
Dimensions
Height Seated (Max) 0.8mm
Length 5mm
Width 5mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
