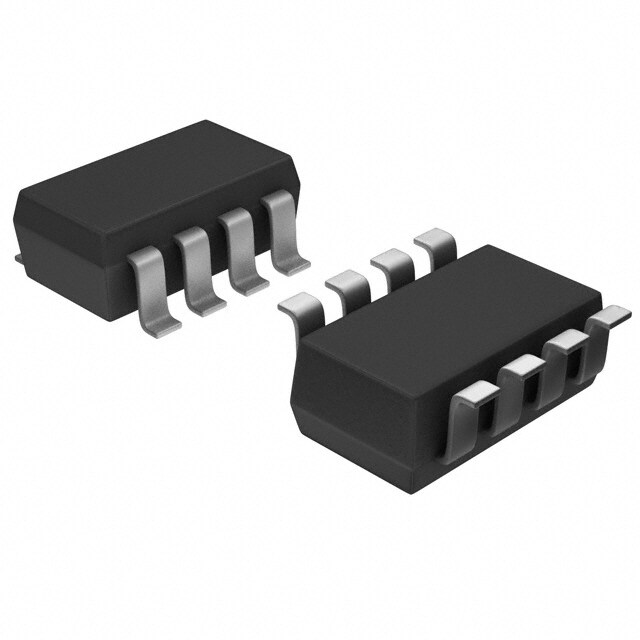

MAX6725KAYHD3+T
RoHS
/
Package SOT-23-8
Category Integrated Circuits (ICs) / PMIC - Supervisors
Description
RoHS Compliant Tape & Reel (TR) Multi-Voltage Supervisor Nickel/Palladium/Gold (Ni/Pd/Au) supervisor 5.5V 2.9mm 140ms 714mW
PDF
/
Inventory: 1830
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 1.625mm
Length 2.9mm
Height Seated (Max) 1.45mm
Technical
Overvoltage Threshold 1.35V
Undervoltage Threshold 1.275V
Reset Timeout 140 ms
Number of Voltages Monitored 3
Voltage - Threshold 2.188V
Reset Active High/Active Low
Watchdog Timer Yes
Adjustable Threshold YES
Operating Supply Current 15μA
Power Dissipation-Max 714mW
Min Supply Voltage 800mV
Max Supply Voltage 5.5V
Number of Channels 3
Temperature Grade INDUSTRIAL
Power Supplies 1/5V
Qualification Status Not Qualified
Pin Count 8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.65mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BICMOS
Subcategory Power Management Circuits
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Multi-Voltage Supervisor
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e4
Published 2006
Packaging Tape & Reel (TR)
Physical
Number of Pins 8
Package / Case SOT-23-8
Mount Surface Mount
