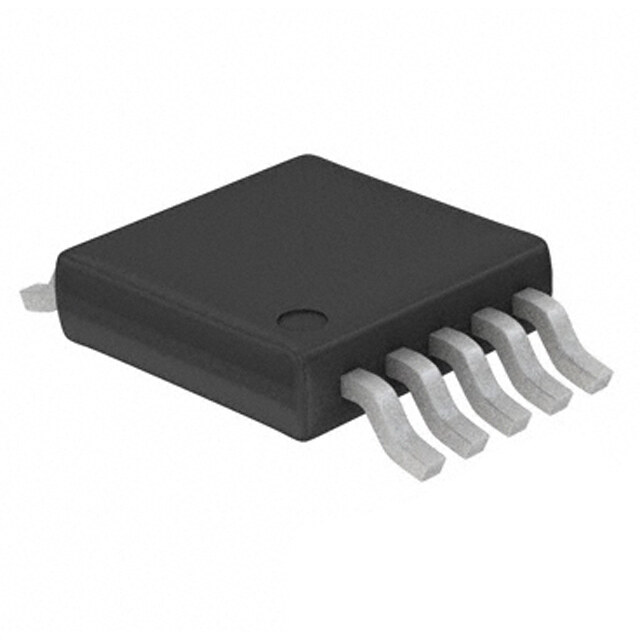

MAX6709JUB+T
RoHS
/
Package UMAX
Category Integrated Circuits (ICs) / PMIC - Supervisors
Description
RoHS Compliant UMAX Multi-Voltage Supervisor Matte Tin (Sn) supervisor 5V 3mm 444mW 35muA
PDF
/
Buying Options
Total Price: USD $7.04
Unit Price: USD $7.036333
≥1 USD $7.036333
≥10 USD $6.638049
≥100 USD $6.262304
≥500 USD $5.90784
≥1000 USD $5.573431
Inventory: 1186
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Package / Case UMAX
Number of Pins 10
Technical
Published 2006
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 10
ECCN Code EAR99
Type Multi-Voltage Supervisor
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Power Management Circuits
Technology BICMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 10
Power Supplies 2.5/5V
Temperature Grade INDUSTRIAL
Number of Channels 4
Max Supply Voltage 5.5V
Min Supply Voltage 2V
Power Dissipation-Max 444mW
Operating Supply Current 35μA
Adjustable Threshold YES
Watchdog Timer No
Reset Active Low
Number of Voltages Monitored 4
Supply Current-Max (Isup) 0.065mA
Undervoltage Threshold 2.25V
Overvoltage Threshold 2.38V
Dimensions
Height Seated (Max) 1.1mm
Length 3mm
Width 3mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
