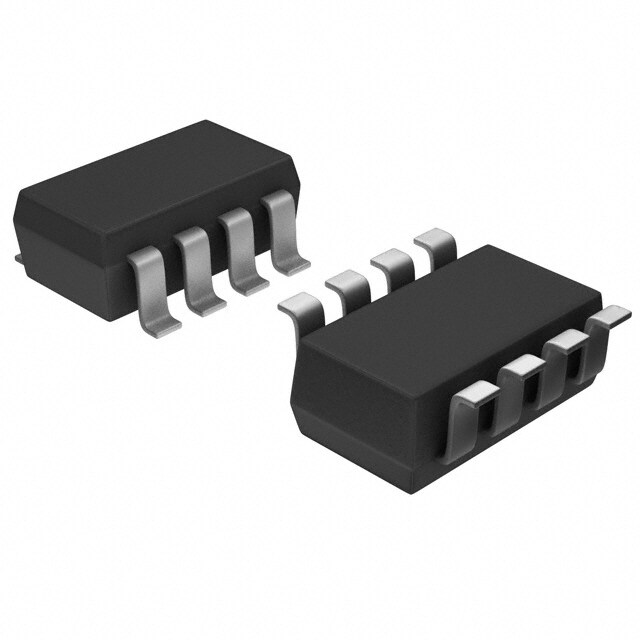

MAX6701AMKA+T
RoHS
/
Package SOT-23-8
Category Integrated Circuits (ICs) / PMIC - Supervisors
Description
RoHS Compliant Tape & Reel (TR) Multi-Voltage Supervisor Matte Tin (Sn) supervisor 5.5V 2.9mm 140ms 714mW
PDF
/
Inventory: 8811
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 1.625mm
Length 2.9mm
Height Seated (Max) 1.45mm
Technical
Overvoltage Threshold 4.5V
Undervoltage Threshold 4.25V
Reset Timeout 140 ms
Number of Voltages Monitored 3
Voltage - Threshold 4.38V
Reset Active Low
Watchdog Timer Yes
Adjustable Threshold YES
Operating Supply Current 12μA
Power Dissipation-Max 714mW
Min Supply Voltage 1.2V
Max Supply Voltage 5.5V
Number of Channels 3
Temperature Grade AUTOMOTIVE
Qualification Status Not Qualified
Pin Count 8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.65mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BICMOS
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Matte Tin (Sn)
Type Multi-Voltage Supervisor
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e3
Published 2006
Packaging Tape & Reel (TR)
Physical
Number of Pins 8
Package / Case SOT-23-8
Mount Surface Mount
Supply Chain
Factory Lead Time 111 Weeks
