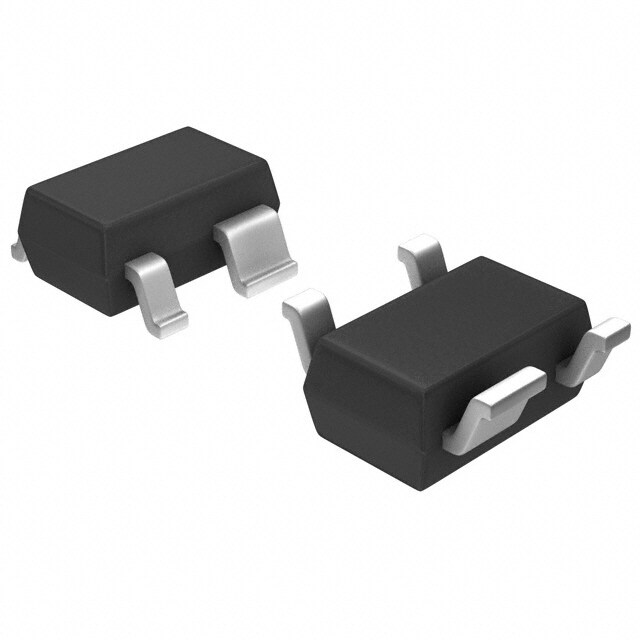

MAX6422XS45+T
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Supervisors
Description
RoHS Compliant Tape & Reel (TR) Simple Reset/Power-On Reset Matte Tin (Sn) supervisor 5V 2.025mm 245mW 2.5muA
PDF
/
Inventory: 7773
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Number of Pins 4
Technical
Packaging Tape & Reel (TR)
Published 2006
JESD-609 Code e3
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 4
ECCN Code EAR99
Type Simple Reset/Power-On Reset
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Subcategory Power Management Circuits
Technology BICMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 0.65mm
Pin Count 4
Temperature Grade AUTOMOTIVE
Number of Channels 1
Max Supply Voltage 5.5V
Min Supply Voltage 1V
Power Dissipation-Max 245mW
Operating Supply Current 2.5μA
Adjustable Threshold NO
Watchdog Timer No
Reset Active High
Voltage - Threshold 4.5V
Number of Voltages Monitored 1
Min Reset Threshold Voltage 4.388V
Max Reset Threshold Voltage 4.613V
Threshold Voltage +4.5V
Undervoltage Threshold 4.388V
Overvoltage Threshold 4.613V
Dimensions
Length 2.025mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
