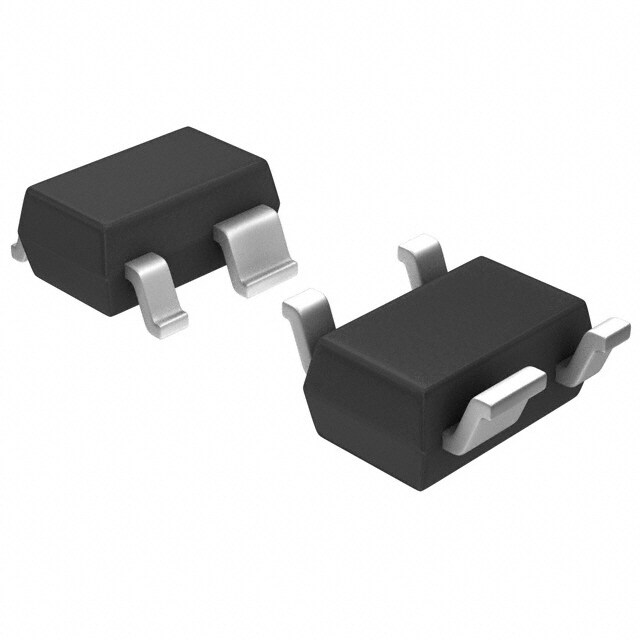

MAX6422XS23+T
RoHS
/
Package /
Category Integrated Circuits (ICs) / PMIC - Supervisors
Description
RoHS Compliant Tape & Reel (TR) RESET THRESHOLD VOLTAGE IS 2.313V Matte Tin (Sn) supervisor 5V 2.025mm 0.0042mA 125C
PDF
/
Buying Options
Total Price: USD $1.33
Unit Price: USD $1.330233
≥1 USD $1.330233
≥10 USD $1.254934
≥100 USD $1.183904
≥500 USD $1.116896
≥1000 USD $1.053667
Inventory: 1129
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 1.25mm
Length 2.025mm
Height Seated (Max) 1.1mm
Technical
Threshold Voltage +2.31V
Supply Current-Max (Isup) 0.0042mA
Adjustable Threshold NO
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Number of Channels 1
Supply Voltage-Min (Vsup) 1V
Temperature Grade AUTOMOTIVE
Power Supplies 1/5.5V
Supply Voltage-Max (Vsup) 5.5V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 125°C
Qualification Status Not Qualified
JESD-30 Code R-PDSO-G4
Pin Count 4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code compliant
Terminal Pitch 0.65mm
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Technology BICMOS
Subcategory Power Management Circuits
HTS Code 8542.39.00.01
Additional Feature RESET THRESHOLD VOLTAGE IS 2.313V
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1
Pbfree Code yes
JESD-609 Code e3
Published 2006
Packaging Tape & Reel (TR)
Physical
Surface Mount YES
